Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154089602 Control Panel - Almond Appelez-nous -
2 154193702 Insert - Control Panel - Almond Appelez-nous -
3 154169101 Timer Special Order $ 412.44

6 5300809317 Light Assembly Appelez-nous -
7 154131503 Adapter-switch Appelez-nous -
8 154168001 Switch Appelez-nous -
9 5303276678 Screw-switch (2) Appelez-nous -
10 154095701 Screw-timer/grounding Special Order $ 10.34

11 154079801 Lens (2) Appelez-nous -
12 154089802 Pushbuttons - Almond Appelez-nous -
13 154090002 Timer Knob - Almond Appelez-nous -
14 240396801 Clamp   (Replaces: 5300808442) Special Order $ 19.13

15 5300809175 Screw 8b X 7/16`` Appelez-nous -
*98762 154167801 Wiring Harness Appelez-nous -
3A 154131203 Shield-timer (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

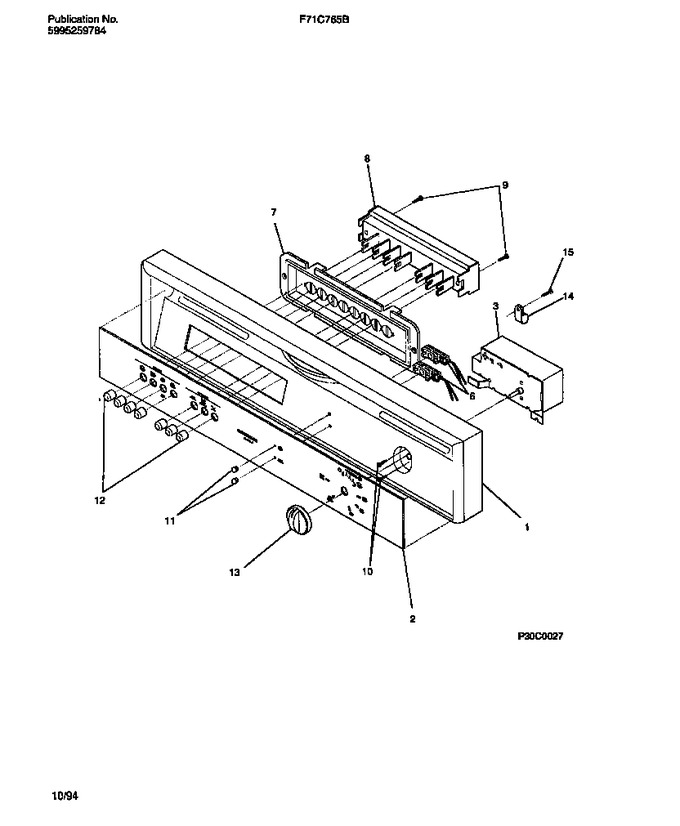

Diagram for F71C765BT0
