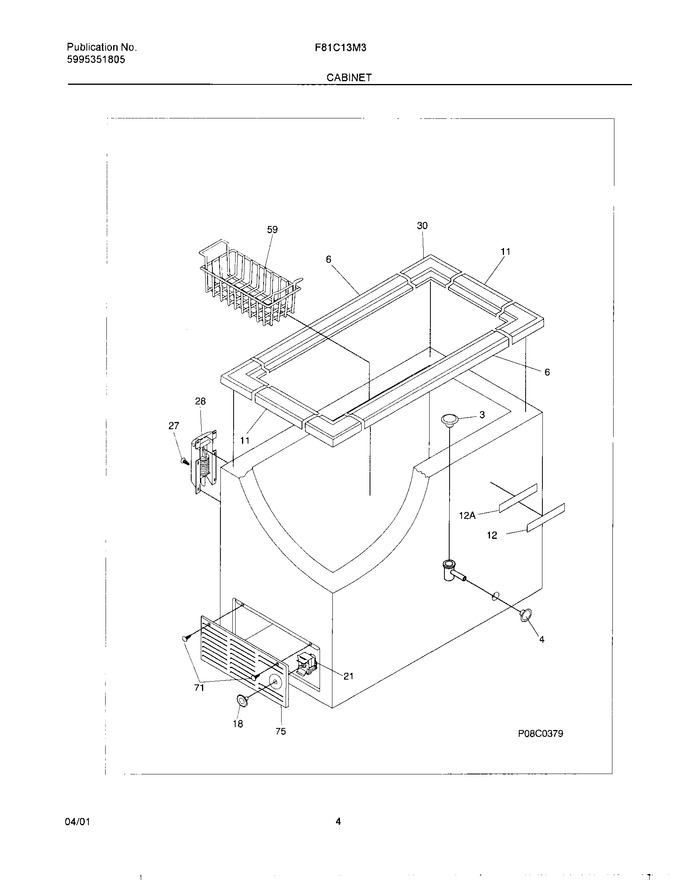

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216110900		Breaker		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008610		Label-nameplate,white ,crown		Appelez-nous	-
18	216707200		Knob-control Cold				$ 44.10
21	216714600		Control-temperature				$ 132.30
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
