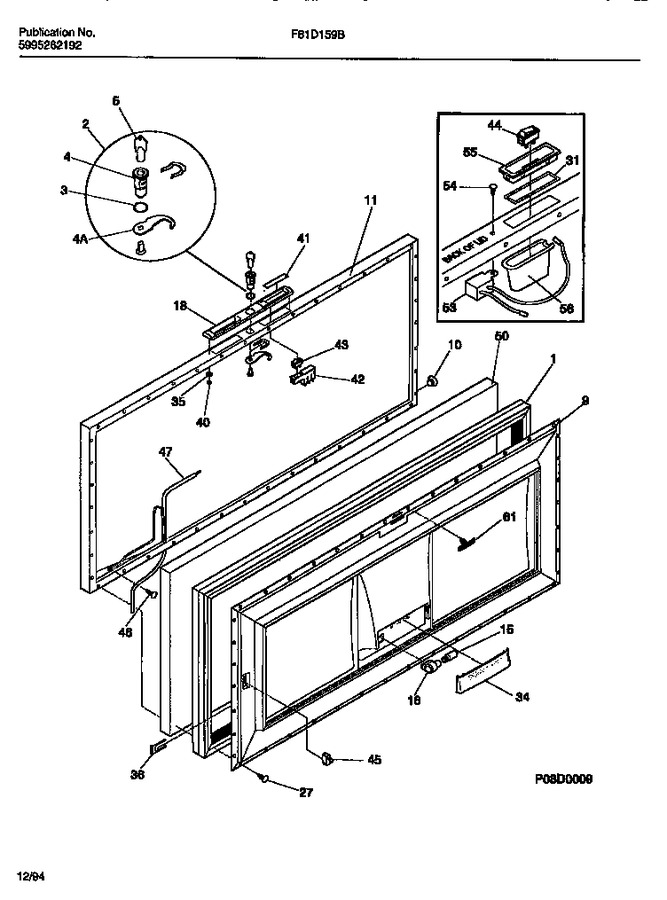

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket Lid-white   (Replaces: 216079900)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
9	216057900		Panel-inner Lid,white		Appelez-nous	-
10	08009395		Plug, Hole		Appelez-nous	-
11	216129907		Panel-outer Lid, White		Appelez-nous	-
15	5304517886		Ligh Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216180800		Handle		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
34	216087900		Shield, Light				$ 13.13
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	530659968		Plate, Backup, Light Switch		Appelez-nous	-
40	3206024		Retainer, Handle		Appelez-nous	-
41	216209300		Lens, Food Care, Monitor		Appelez-nous	-
42	5303290000		Monitor,food Care		Appelez-nous	-
43	3201504		Switch-food Care,monitor		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
45	3201509		Switch, Defrost (non-illustrated)		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	3201521		Harness, Wire		Appelez-nous	-
53	5303208483		Buzzer, Alarm		Appelez-nous	-
54	5303272319		Screw, Buzzer		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
56	5308037857		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
*77320	3201507		Harness, Wirng, Defrost		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
