SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

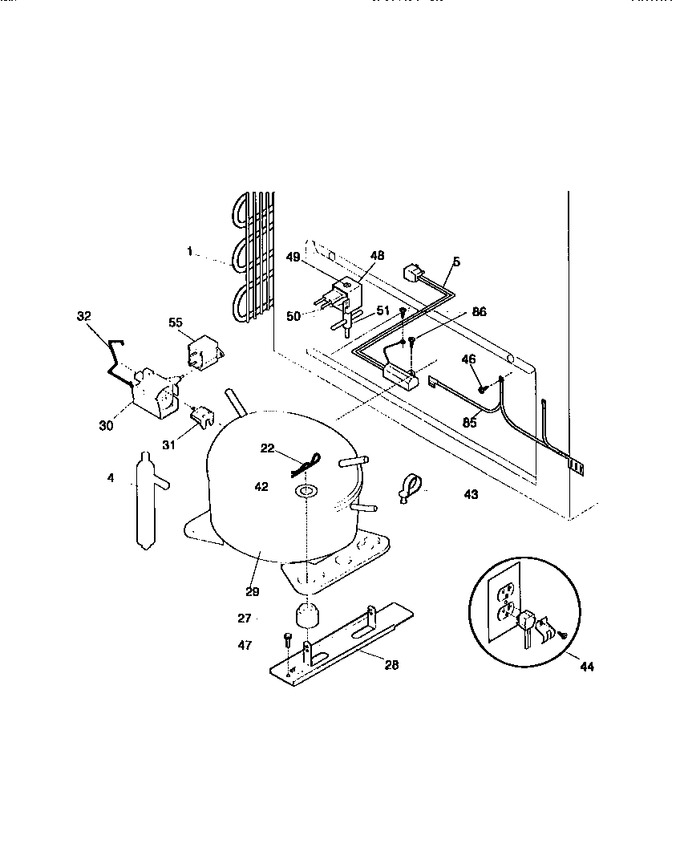

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925238		Condenser				$ 467.78
4	5303305677		Drier-filter			Immediately	$ 31.67
5	216090100		Harness-wiring,main		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
29	5300186041		Compressor W/elec, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303206885		Overload				$ 119.23
32	216147800		Wire-bale		Appelez-nous	-
42	216232700		Washer-flat		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	08016776		Screw-compressor, Ind Hwh Type T, 10-32 X 1/2, Support		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	5303307575		Wire-ground, Solenoid		Appelez-nous	-
51	216161900		Valve, Formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236300)			Immediately	$ 35.38
85	5303294326		Wire Ground, Compressor		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
