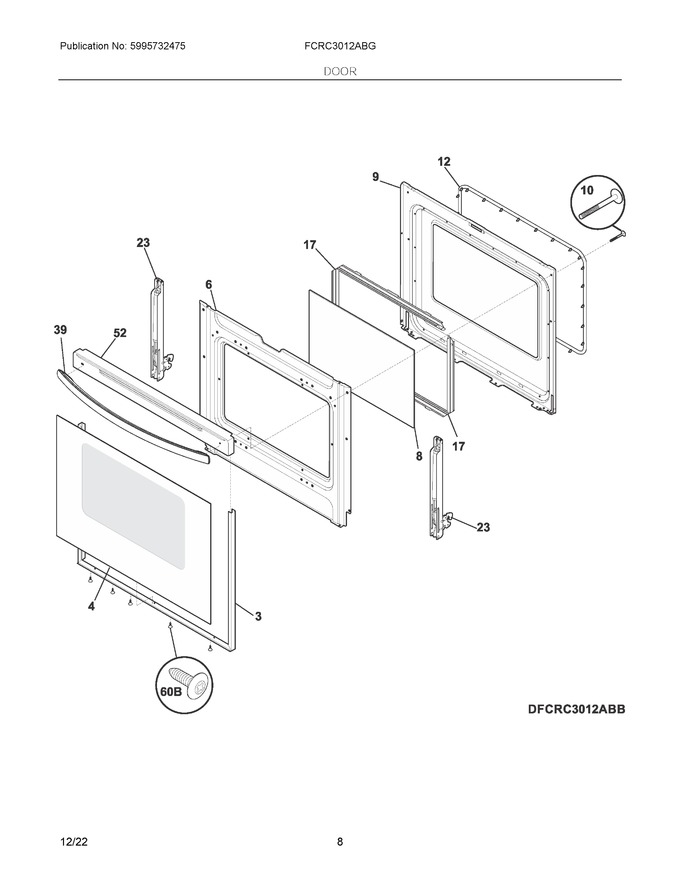

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304532039 | Trim-door Blk (3 Sided) |
|
- | |||||
| 4 | 316559109 | Glass Assembly, Outer, Black |
|
$ 213.10 | |||||
| 6 | 316406328 | Shield, Wool |
|
$ 87.21 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner |
|
$ 116.95 | |||||
| 9 | 316423719 | Liner, Oven Door |
|
$ 153.20 | |||||
| 10 | 316433300 | Screw, 10-14 X 2.125", Handle Mtg. |
|
Immediately | $ 27.50 | ||||
| 12 | 5304498835 | Seal, Oven Door (Replaces: 316403101) |
|
Immediately | $ 88.74 | ||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 25.02 | ||||
| 23 | 316575957 | Hinge, Oven Door, Light Pink |
|
$ 59.91 | |||||
| 39 | 5304522046 | Handle, Door, Black |
|
Immediately | $ 127.96 | ||||
| 52 | 316575501 | Cap, Door Trim, Black |
|
$ 110.73 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
