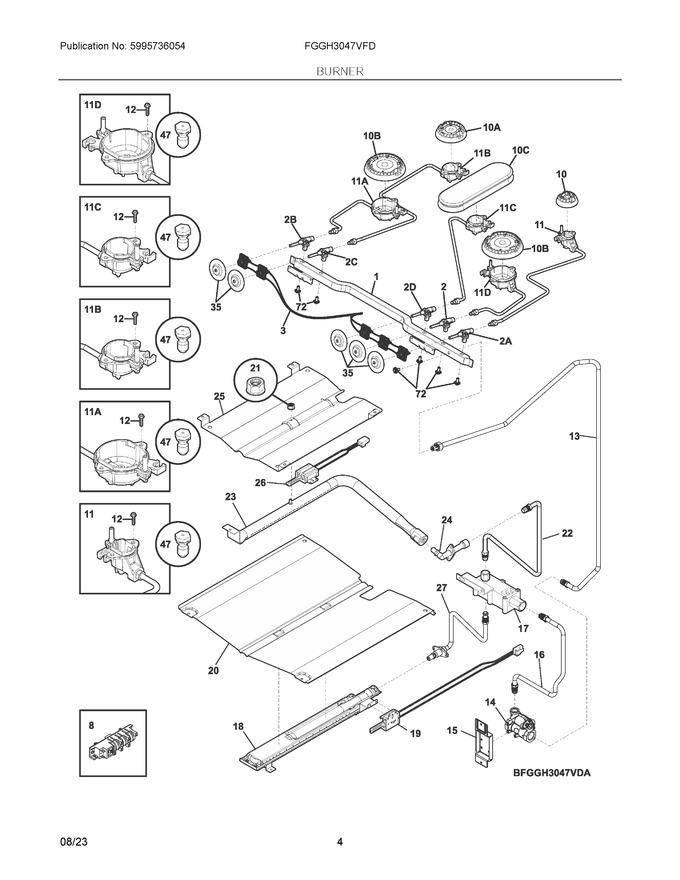

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516832 | Manifold, Pipe |
|
$ 140.29 | |||||
| 2 | 5304507282 | Valve, Top Burner, White Stem, 1500btu (Replaces: 5304506550) |
|
Immediately | $ 53.85 | ||||
| 3 | 5304528832 | Harness, Ignition |
|
Immediately | $ 111.91 | ||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 76.06 | ||||
| 10 | 5304521014 | Burner, Crown, Small, Aft |
|
Immediately | $ 21.69 | ||||
| 11 | 5304520921 | Ignitor/orifice Assy., Top Burner, Rh Rear, 5k, W/holder, Tube |
|
$ 98.60 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 15.17 | ||||
| 13 | 5304514135 | Tube, Manifold Supply |
|
- | |||||
| 14 | 316091711 | Regulator, Pressure |
|
Immediately | $ 90.03 | ||||
| 15 | 316603300 | Bracket, Regulator |
|
$ 22.75 | |||||
| 16 | 5304507349 | Tube, Safety Valve |
|
$ 34.13 | |||||
| 17 | 5303210798 | Valve, Safety |
|
Immediately | $ 587.56 | ||||
| 18 | 5304494426 | Burner, Oven |
|
$ 94.98 | |||||
| 19 | 316489403 | Ignitor, Bake (Replaces: 5304508786) |
|
Immediately | $ 113.15 | ||||
| 20 | 316602002 | Baffle, Oven Burner |
|
$ 65.98 | |||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 5304516857 | Tube, Broil Burner |
|
- | |||||
| 23 | 316404302 | Burner, Broiler |
|
$ 104.18 | |||||
| 24 | 5304516894 | Elbow, Mixer |
|
$ 87.21 | |||||
| 25 | 5304497666 | Baffle, Broiler |
|
$ 94.04 | |||||
| 26 | 5304506545 | Ignitor, Broiler |
|
Immediately | $ 94.21 | ||||
| 27 | 316602400 | Tube, Valve To Bake, W/mixer |
|
$ 160.18 | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 11.38 | ||||
| 47 | GRLP4 | Lp Conversion Kit, W/instructions, Optional, Accessory |
|
Immediately | $ 56.70 | ||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 10A | 5304521015 | Burner, Crown, Medium, Aft |
|
Immediately | $ 40.71 | ||||
| 10B | 5304521016 | Burner, Crown, Large, Aft |
|
Immediately | $ 34.94 | ||||
| 10C | 5304521033 | Burner Assembly, Crown, Oval, Aft, W/cap |
|
$ 192.67 | |||||
| 11A | 5304521034 | Ignitor/orifice Assy., Top Burner, Lh Front, 14k, W/holder, Tube |
|
Immediately | $ 167.90 | ||||
| 11B | 5304521035 | Ignitor/orifice Assy., Top Burner, Lh Rear, 9.5k, W/holder, Tube |
|
$ 132.71 | |||||
| 11C | 5304521036 | Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder, Tube |
|
Immediately | $ 132.71 | ||||
| 11D | 5304521037 | Ignitor/orifice Assy., Top Burner, Rh Front, 18k, W/holder, Tube |
|
Immediately | $ 198.08 | ||||
| 2A | 5304506547 | Valve, Top Burner, Black Stem, 500btu |
|
$ 69.01 | |||||
| 2B | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 62.34 | ||||
| 2C | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 82.66 | ||||
| 2D | 5304506551 | Valve, Top Burner, Pink Stem, 2500btu |
|
$ 61.43 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021104 | Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt |
|
$ 7.79 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316602300 | Bracket, Mixer, Bake |
|
$ 12.05 | |||||
| NIA | 316498100 | Shield, Wire, Safety Valve |
|
$ 15.17 | |||||
| NIA | 316401500 | Cover, Broil Ignitor |
|
$ 12.89 | |||||
| NIA | 5304517675 | Wire, Ground, Spark Module, W/connector |
|
- |
