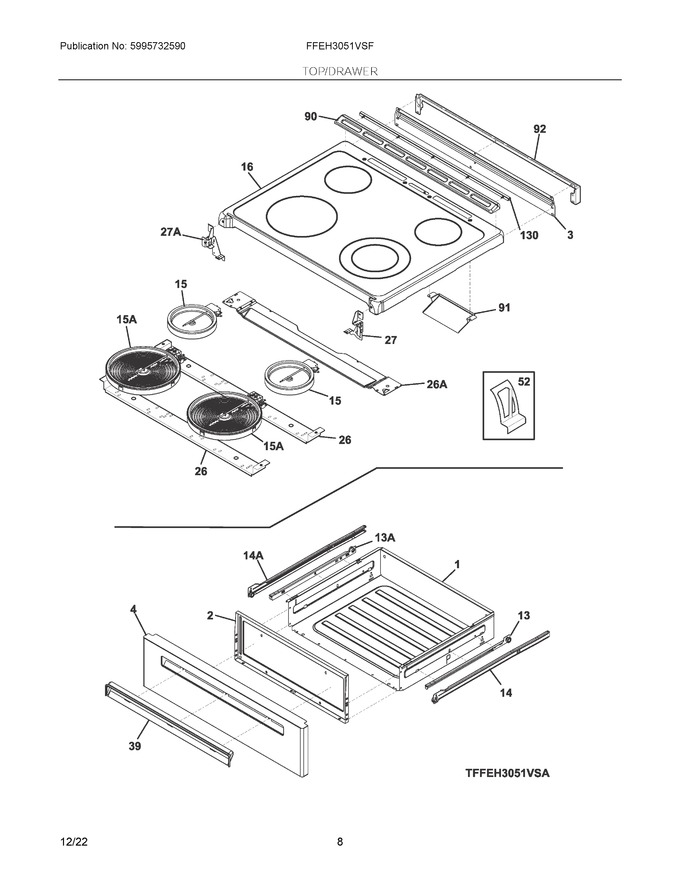

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304510527		Panel, Drawer, Stainless				$ 110.06
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304515481		Smoothtop, Assembly, Glass/steel, Black		Appelez-nous	-
26	5304512926		Channel, Element Support				$ 46.22
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
39	5304511879		Handle Insert, Drawer				$ 66.99
52	316461700		Clip, Element Mtg				$ 12.05
90	5304514157		Trim, Vent, Black, Rear				$ 61.43
91	5304514181		Deflector, Moisture, (2)				$ 10.63
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304515473		Harness, Wiring, Surface		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
