SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

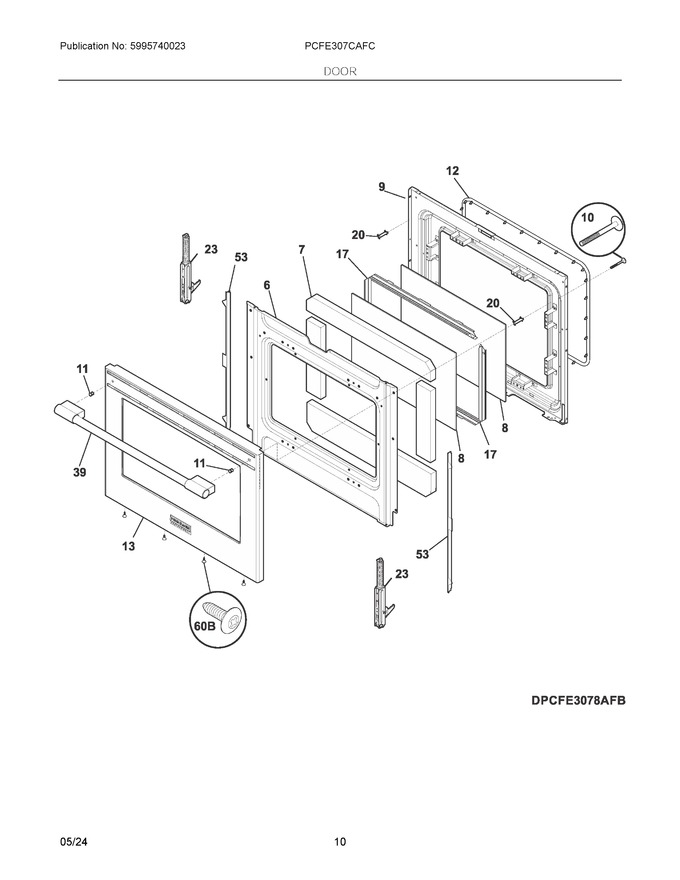

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452723		Glass, Oven Door, Black, W/foil			Immediately	$ 226.00
6	316402316		Shield, Wool			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117506)				$ 116.95
9	316423814		Liner, Oven Door				$ 162.30
10	5304414648		Screw, Handle Mtg.				$ 14.18
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
13	5304522584		Door, Stainless, W/badge				$ 510.09
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284102		Spacer, Door Handle, (2)			Immediately	$ 17.44
23	5304522916		Hinge, Door, Dual Spring				$ 92.53
39	5304494423		Handle, Asm			Immediately	$ 314.69
53	5304532043		Shield-filler Door Ss, 53				$ 37.41
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
