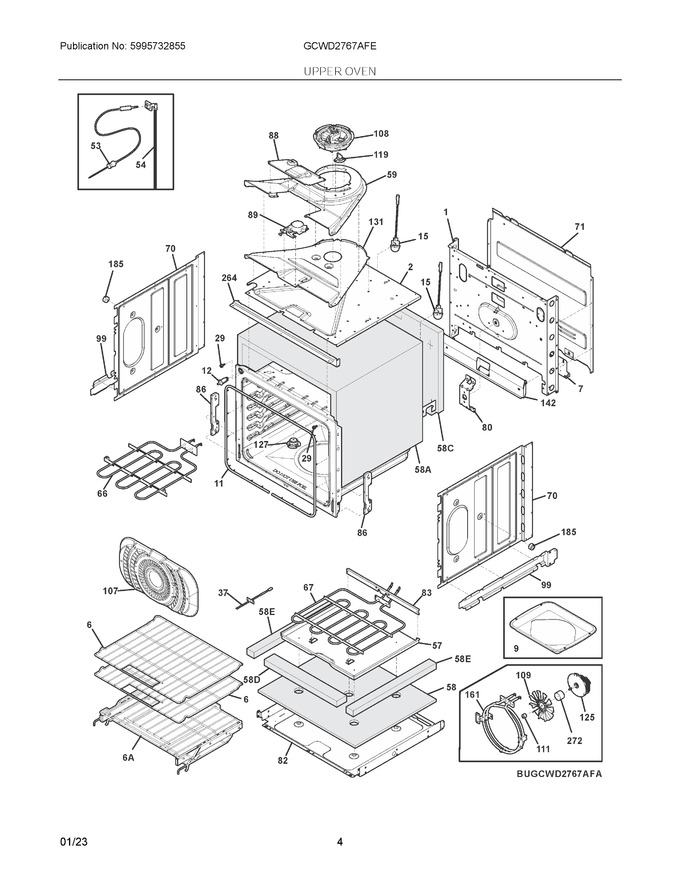

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027809		Shield, Insulation, Top		Appelez-nous	-
6	5304514984		Rack, Oven, W/handle			Immediately	$ 77.19
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	316081903		Tray, Steam, Midnight Black				$ 78.94
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 36.50
29	316517600		Bumper, Front, Main				$ 12.05
37	5304525427		Probe, Temp			Immediately	$ 53.48
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
66	140123969028		Element, Broil, 6 Pass, 4000w   (Replaces: 5304514924)		Appelez-nous	-
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022001		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	808930503		Receptacle, Hinge, Soft Close		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assembly, 2 Terminal			Immediately	$ 74.12
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
107	5304527949		Cover, Convection Fan, Midnight Black				$ 168.16
108	5304529887		Motor Assembly, Blower			Immediately	$ 177.12
109	5304525455		Blade, Fan, Convection				$ 14.41
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	5304538823		Thermostat, Safety, 125c   (Replaces: 318578509)			Immediately	$ 14.72
125	139008507		Motor, Convection Fan, 2 Speed				$ 97.16
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
161A	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
6A	140304432010		Rack Assembly, Gliding, Nickel, W/handle   (Replaces: 5304518865)		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304525449		Harness, Wiring, Upper Ads				$ 53.94
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5304532404		Harness, Wiring, Ads Mdl, Tachometer		Appelez-nous	-
