SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

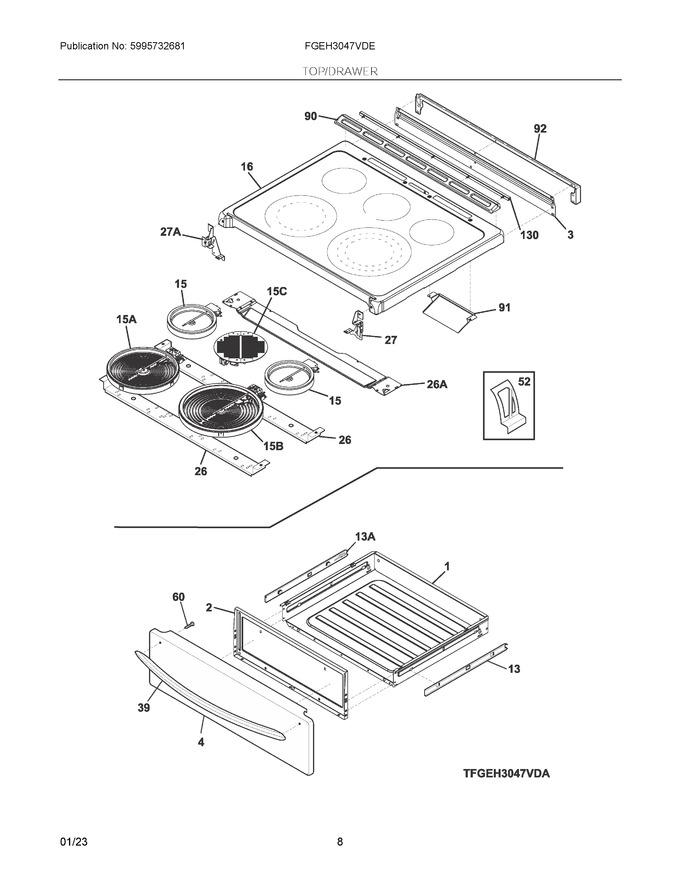

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 125.44
2	5304527988		Liner, Drawer			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304517133		Panel, Drawer, Black Stainless				$ 193.99
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304516852		Smoothtop, Assembly, Glass/steel, Black			Immediately	$ 539.20
26	5304512926		Channel, Element Support				$ 46.22
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
39	5304518030		Handle, Door/drawer, Black Stainless				$ 157.60
52	316461700		Clip, Element Mtg				$ 12.05
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304514157		Trim, Vent, Black, Rear				$ 61.43
91	5304514181		Deflector, Moisture, (2)				$ 10.63
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
15A	5304533521		Element, Dual, 9/6", Surface, 3200/1400w			Immediately	$ 91.16
15B	318297810		Element, Triple, 1200/2000/3000w, 6"/9"/12			Immediately	$ 356.54
15C	5304521951		Element, Warmer, 100 W			Immediately	$ 64.46
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304516837		Harness, Wiring, Surface			Immediately	$ 179.73
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
