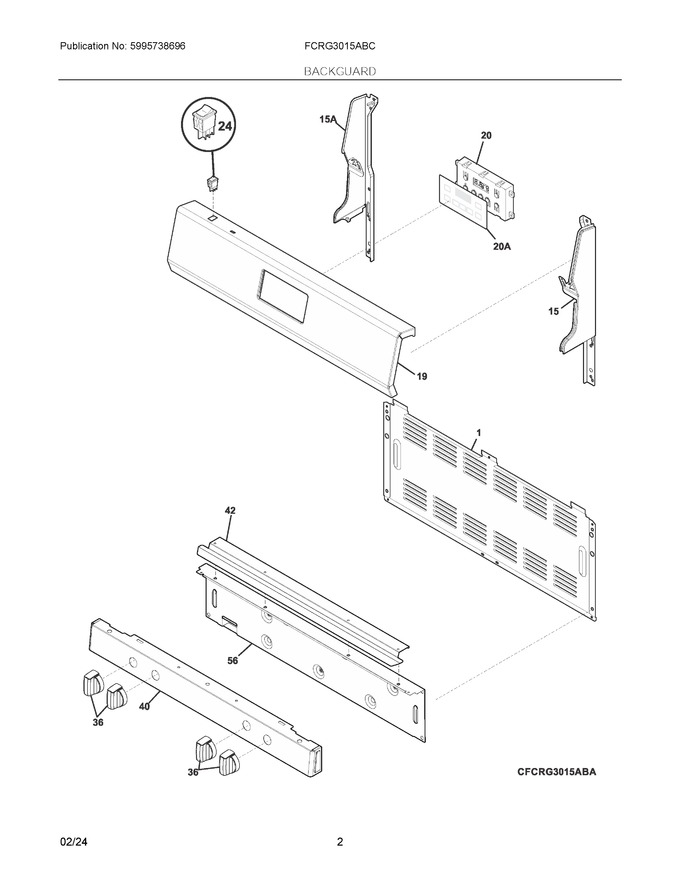

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304534378		Panel-bg G Uggo17opp Blk Scrnd, 19		Appelez-nous	-
20	5304533728		Control-eoc Uggo Gas Es100, 20 #				$ 145.91
24	316116400		Receptacle, Oven Light, 24 #			Immediately	$ 56.10
36	5304507386		Knob, Top Valve, Black				$ 66.74
40	316605354		Panel, Manifold, Black				$ 93.89
42	808754601		Deflector, Backguard				$ 77.97
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316220731		Overlay-uggo Black, 20a				$ 12.43
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
