01 - Cover Sheet
02 - Control Panel

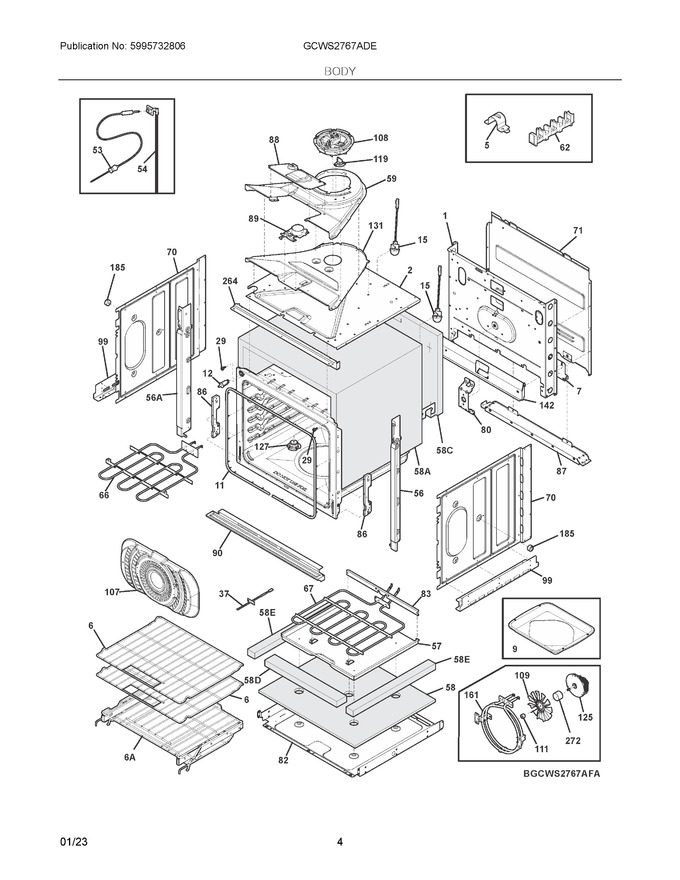

03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506958 | Panel, Main Back |
|
- | |||||
| 2 | 139027809 | Shield, Insulation, Top |
|
- | |||||
| 5 | 5304530364 | Bracket, Conduit Mtg. |
|
- | |||||
| 6 | 5304514984 | Rack, Oven, W/handle |
|
Immediately | $ 77.19 | ||||
| 7 | 5304506960 | Panel, Service, Main Back |
|
- | |||||
| 9 | 316081903 | Tray, Steam, Midnight Black |
|
$ 78.94 | |||||
| 11 | 807545501 | Seal, Oven Door, Gray |
|
Immediately | $ 81.39 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304533411 | Lamp Assembly, Halogen, G9, 40w, 120v (Replaces: 5304530343) |
|
Immediately | $ 36.50 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 37 | 5304525427 | Probe, Temp |
|
Immediately | $ 53.48 | ||||
| 53 | 5304504202 | Probe, Meat Temp, Red |
|
Immediately | $ 106.19 | ||||
| 54 | 139017203 | Receptacle Assy, Meat Probe |
|
Immediately | $ 153.09 | ||||
| 56 | 5304525433 | Trim, Side, Black, Rh |
|
- | |||||
| 57 | 5304538692 | Box, Bake Element (Replaces: 5304506949) |
|
- | |||||
| 58 | 5304506952 | Insulation, Bake Element, Lower |
|
$ 77.26 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 85.76 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 140123969028 | Element, Broil, 6 Pass, 4000w (Replaces: 5304514924) |
|
- | |||||
| 67 | 140010667149 | Element, Hidden Bake, 2500w (Replaces: 5304506946) |
|
$ 55.23 | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 72.05 | |||||
| 71 | 139022001 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 5304506947 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 5304506951 | Shield, Bake Element, Rear |
|
- | |||||
| 86 | 808930503 | Receptacle, Hinge, Soft Close |
|
- | |||||
| 87 | 139021901 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 24.10 | |||||
| 89 | 5304528835 | Motor, Latch Assembly, 2 Terminal |
|
Immediately | $ 74.12 | ||||
| 90 | 5304531544 | Trim, Bottom, Black Stainless |
|
$ 96.57 | |||||
| 91 | 5304500329 | Bracket, Side Cavity, Short, (2) |
|
- | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 56.70 | |||||
| 107 | 5304527949 | Cover, Convection Fan, Midnight Black |
|
$ 168.16 | |||||
| 108 | 5304529887 | Motor Assembly, Blower |
|
Immediately | $ 177.12 | ||||
| 109 | 5304525455 | Blade, Fan, Convection |
|
$ 14.41 | |||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 112 | 5304538823 | Thermostat, Safety, 125c (Replaces: 318578509) |
|
Immediately | $ 14.72 | ||||
| 125 | 139008507 | Motor, Convection Fan, 2 Speed |
|
$ 97.16 | |||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 73.00 | |||||
| 142 | 5304506953 | Sheild, Air Deflector, Back |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 47.63 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 139003501 | Trim, Vent, Black, Front |
|
$ 36.20 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 56A | 5304525434 | Trim, Side, Black, Lh |
|
- | |||||
| 58A | 139001701 | Insulation, Oven Wrapper, 27", Top & Sides |
|
- | |||||
| 58C | 5304506954 | Insulation, Oven, Back |
|
- | |||||
| 58D | 5304506965 | Insulation, Bake Element, Front |
|
- | |||||
| 58E | 5304506966 | Insulation, Bake Element, Side |
|
- | |||||
| 6A | 140304432010 | Rack Assembly, Gliding, Nickel, W/handle (Replaces: 5304518865) |
|
- | |||||
| NI | 5304525449 | Harness, Wiring, Upper Ads |
|
$ 53.94 | |||||
| NI | 5304532406 | Harness, Wiring, Low Voltage |
|
- | |||||
| NI | 5304525447 | Harness, Wiring, Main |
|
$ 185.64 | |||||
| NI | 5304535368 | Harness, Conduit Assy., Power Connect (Replaces: 5304525431) |
|
$ 154.45 | |||||
| NI | 387856311 | Screw, 4.2 X 10 |
|
$ 3.03 | |||||
| NI | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 13.46 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304528293 | Screw, T20, 8-18 X .79 |
|
- | |||||
| NI | 5304531542 | Install Kit, Wood Bracing, W/screws |
|
$ 35.30 | |||||
| NI | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.32 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 316001017 | Screw, Grounding, 10-24 X 1.835, Green |
|
$ 3.03 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 |
