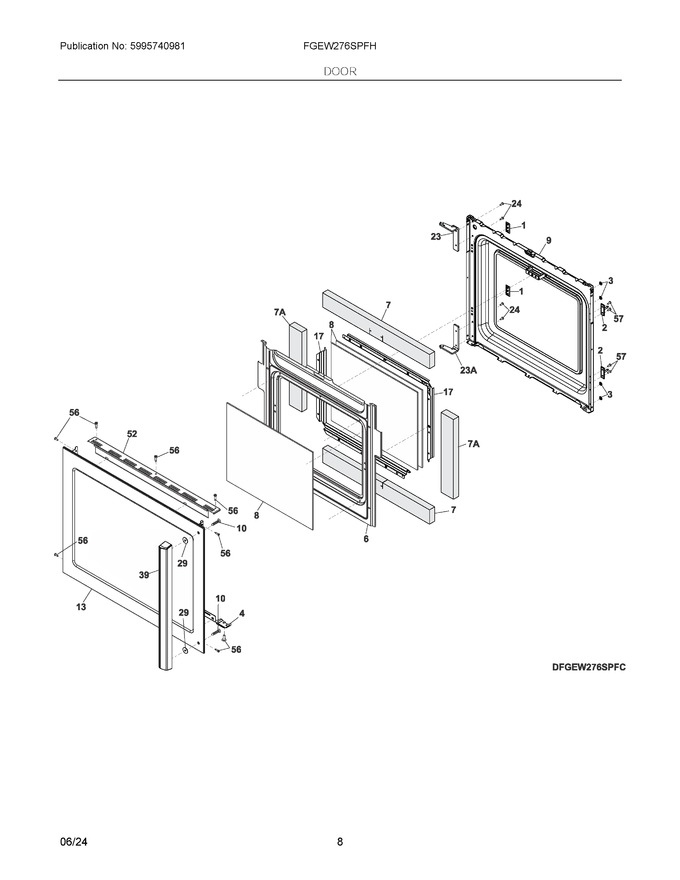

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304497582 | Plug, Door, Rectangular, (2) |
|
$ 14.89 | |||||
| 2 | 808983901 | Catch, Door, (2) |
|
Immediately | $ 32.70 | ||||
| 3 | 5304497575 | Plug, Door, Inner, (4) |
|
$ 9.22 | |||||
| 4 | 139023503 | Trim, Door, Black, Bottom |
|
$ 78.67 | |||||
| 6 | 139014207 | Shield, Wool, Door |
|
Immediately | $ 143.87 | ||||
| 7 | 318372017 | Insulation, Door |
|
$ 16.30 | |||||
| 8 | 139085803 | Glass, Door, Inner, (2), Eko |
|
Immediately | $ 108.45 | ||||
| 9 | 5304504205 | Liner, Door |
|
Immediately | $ 217.58 | ||||
| 10 | 5304414648 | Screw, Handle Mtg., #10-24 X .625 (Replaces: 316439510) |
|
$ 14.18 | |||||
| 13 | 5304524352 | Door Assembly, Steel/glass, Stainless/black, Outer, W/trim |
|
$ 602.17 | |||||
| 17 | 318264735 | Spacer, Glass, (2) |
|
$ 64.49 | |||||
| 23 | 808892901 | Hinge, Oven Door, Top |
|
Immediately | $ 24.80 | ||||
| 24 | 5304461333 | Screw, 10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| 29 | 5304497580 | Spacer, Door Handle |
|
$ 10.63 | |||||
| 39 | 5304497571 | Handle, Door, Stainless |
|
$ 203.87 | |||||
| 52 | 139023603 | Trim, Oven Door, Black, Upper |
|
$ 99.23 | |||||
| 56 | 5303324184 | Screw, Truss Head, #8-32 X 3/8 (Replaces: 809136201) |
|
Immediately | $ 14.18 | ||||
| 57 | 5303324184 | Screw, 8-18 X 5/16, Black |
|
Immediately | $ 14.18 | ||||
| 64 | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| 23A | 808892902 | Hinge, Oven Door, Bottom |
|
Immediately | $ 25.52 | ||||
| 7A | 318372018 | Insulation, 20.5 X 2.375, 1" Thick, (2) |
|
$ 14.18 | |||||
| NIA | 139022102 | Insualtion, Door, 546 X 102mm, W/foil Back |
|
$ 38.98 | |||||
| NIB | 139022103 | Insualtion, Door, 508 X 51mm |
|
$ 14.18 |
