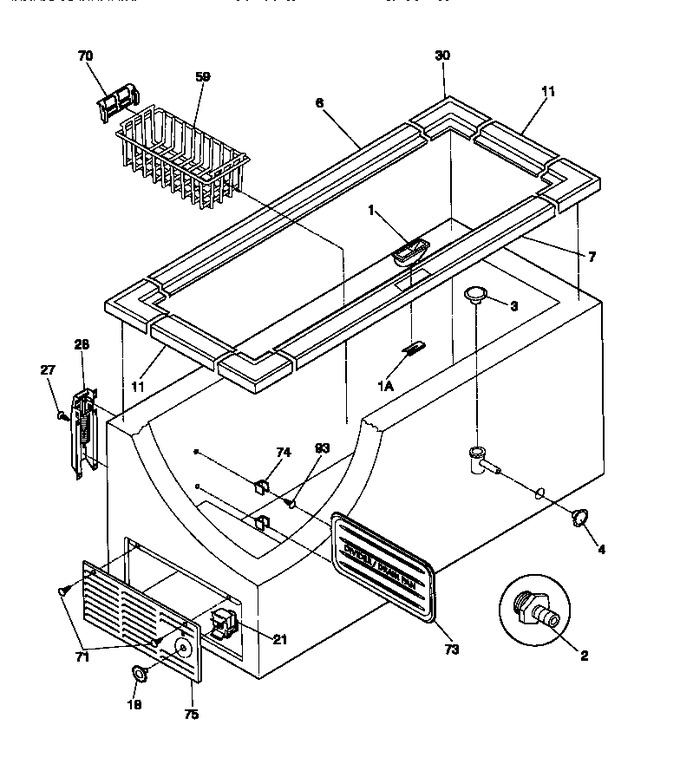

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
1	216080800		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216111200		Breaker, Hinge Side		Appelez-nous	-
7	216111800		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	216161200		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216035300		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080600		Basket,upper ,(2)				$ 95.29
70	216375100		Handle-basket, Teal		Appelez-nous	-
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216034301		Access Panel				$ 103.01
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*04761	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
