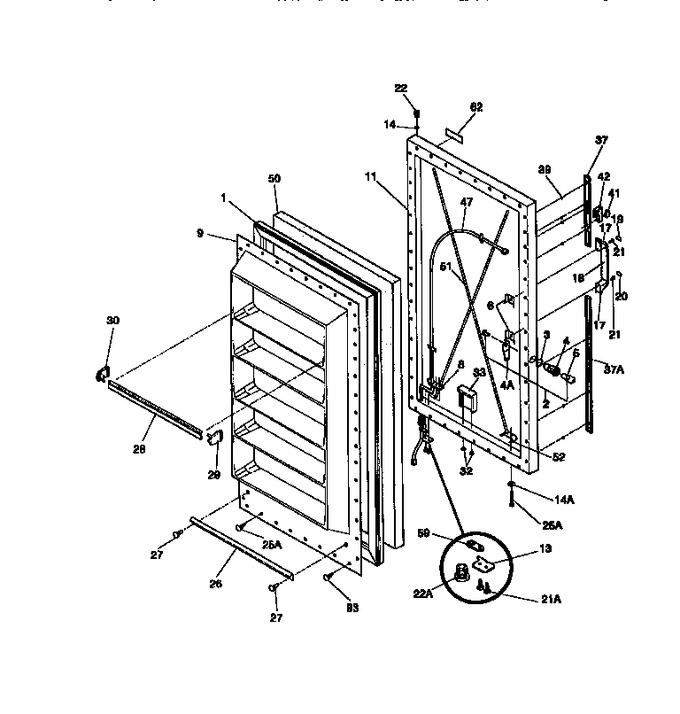

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206256		Gasket, Door, White				$ 248.43
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	216013800		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
6	3202683		Nut-anchor, Door Hdl Screw		Appelez-nous	-
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216063507		Panel-inner Door, White		Appelez-nous	-
11	5303271082		Panel-outer Door, White		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303307087		Washer		Appelez-nous	-
14	5303301500		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
21	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82
22	5303210403		Bearing		Appelez-nous	-
22	5303297490		Bearing, Hinge		Appelez-nous	-
25	5303302716		Screw, Hex Sems Blunt, 10, 16 X 2.0, Adj Wire Brkt		Appelez-nous	-
26	5308016356		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216273800		Rack, Shelf, Narrow, White		Appelez-nous	-
29	216339800		End Cap, Narrow, White, Rh		Appelez-nous	-
30	5303925377		End Cap, Narrow, White, Lh   (Replaces: 216339900)			Immediately	$ 46.07
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
37	216087600		Trim-handle,bottom		Appelez-nous	-
37	216087500		Trim-handle, White, Top		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
41	216211000		Lens-food Care Monitor		Appelez-nous	-
42	216083700		Monitor, Food Care		Appelez-nous	-
47	216290400		Harness-wire, Electrical, Door		Appelez-nous	-
50	216271800		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
51	08037981		Wire, Door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
62	216206200		Bezel, Nameplate		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*91320	5303297123		Screw, Th, 8-32 Unc 2 X 1/2		Appelez-nous	-
