View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

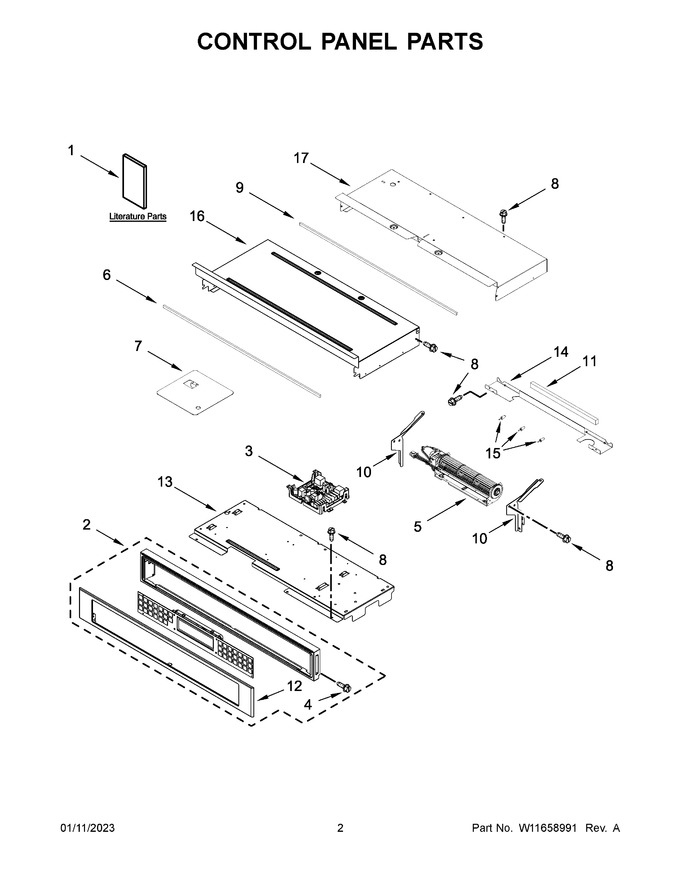

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340821 | Owner's Manual |
|
- | |||||
| 2 | W11600646 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11304101) |
|
$ 777.33 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 292.92 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 12.62 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 332.78 | ||||
| 6 | W11226313 | Gasket, Rubber (652mm) (Replaces: W11162062) |
|
$ 20.92 | |||||
| 7 | W11819353 | Cover, Wifi (Replaces: W11308343) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10728475 | Gasket, Rubber |
|
$ 32.68 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 12 | W10588741 | Skin, Control Panel (stainless) |
|
$ 207.24 | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 18.96 | |||||
| 16 | W11244469 | Cover, Top Front 27 In Chassis |
|
- | |||||
| 17 | W11244459 | Cover, Top Back 27 In Chassis |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11382210 | Quick Start Guide |
|
- | |||||
| 1B | W11479717 | Tech Sheet |
|
- | |||||
| 3A | W11598200 | Appliance Manager, Copernicus (without Power Supply) (Replaces: W11249217) |
|
Immediately | $ 313.61 | ||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 20.12 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 11.55 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | W11245674 | Harness, Main |
|
Immediately | $ 344.09 | ||||
| NI | NP | Accessory Parts, Xhp1000xw White 10" Pedestal |
|
- | |||||
| NI | W11788676 | Harness, Signal (Replaces: W11256625) |
|
Immediately | $ 207.71 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 52.97 | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 28.24 | ||||
| NI | W10655464 | Bracket, Harness |
|
$ 34.89 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 18.35 |
