SELECT A DIAGRAM

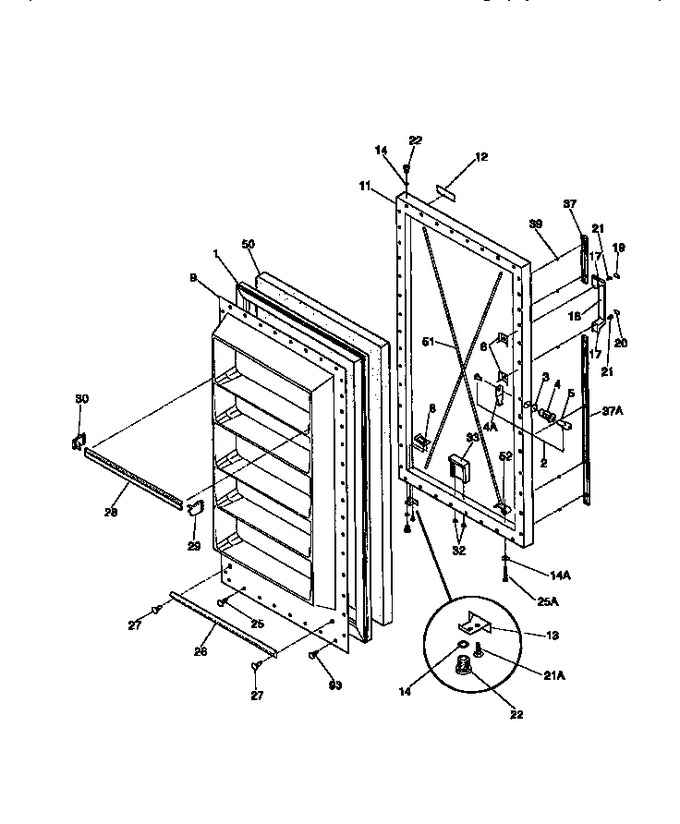

01 - Cover


02 - Door


03 - Cabinet


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206255		Gasket-door		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer-lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
4	216013800		Hook, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
6	3202683		Nut-anchor, Door Hdl Screw		Appelez-nous	-
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216012902		Panel, Inner Door, White		Appelez-nous	-
11	5303925220		Panel, Outer Door, White		Appelez-nous	-
12	216315200		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	09950839		Washer, Plain, Door Bracket		Appelez-nous	-
14	5303301500		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209001		Insert,handle Bottom		Appelez-nous	-
21	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	5303302716		Screw, Hex Sems Blunt, 10, 16 X 2.0, Adj Wire Brkt		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2, Inner Panel		Appelez-nous	-
26	5308016356		Gasket, Secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216273800		Rack, Shelf, Narrow, White		Appelez-nous	-
29	5303925377		End Cap, Narrow, White, Rh   (Replaces: 216257600)			Immediately	$ 46.07
30	5303925377		End Cap, Narrow, White, Lh   (Replaces: 216257700)			Immediately	$ 46.07
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
37	216087600		Trim-handle,bottom		Appelez-nous	-
37	216211100		Trim-handle, Upper		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
50	216271800		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
51	08037415		Wire, Door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85

    View Diagram in Separate Window       Print Part List
