SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

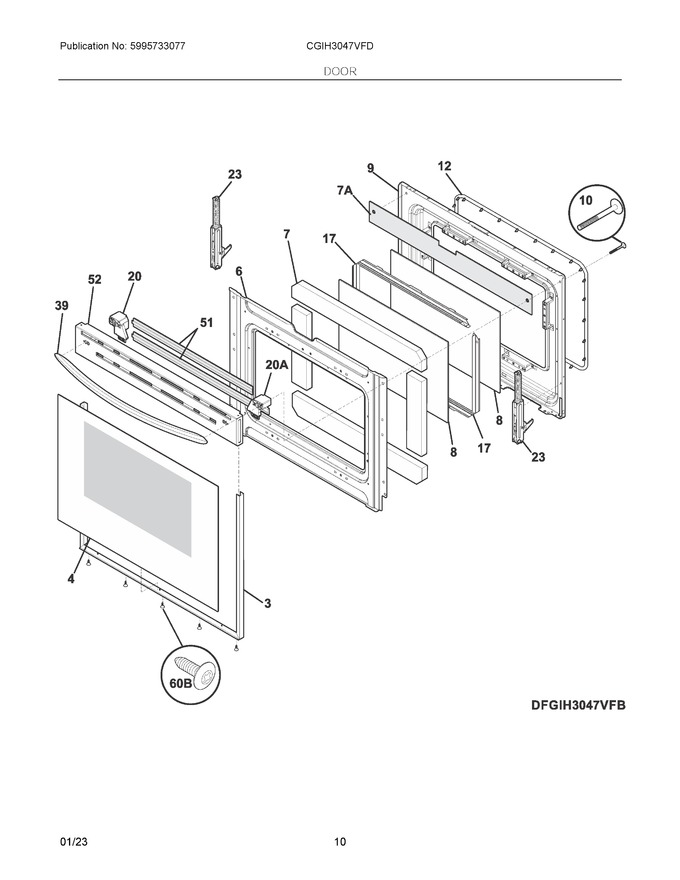

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 63.08
4	316350103		Glass, Door, Black, Outer				$ 130.28
6	316402316		Shield, Wool			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117506)				$ 116.95
9	316423814		Liner, Oven Door				$ 162.30
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353004		Spacer, Door, Rh				$ 27.30
23	5304521043		Hinge, Door, Orange, Dual Spring			Immediately	$ 84.93
39	316554010		Handle, Door/drawer, Stainless			Immediately	$ 168.44
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304532520		Door Cap, Assembly, Stainless				$ 160.62
60	5303288572		Screw-handle Mtg		Appelez-nous	-
20A	316353005		Spacer, Door, Lh				$ 27.30
4A	316355501		Glass Assembly, Door, Black, Outer, W/foil			Immediately	$ 256.88
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
7A	5304518033		Insulation, Door Liner, Top				$ 45.50
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
