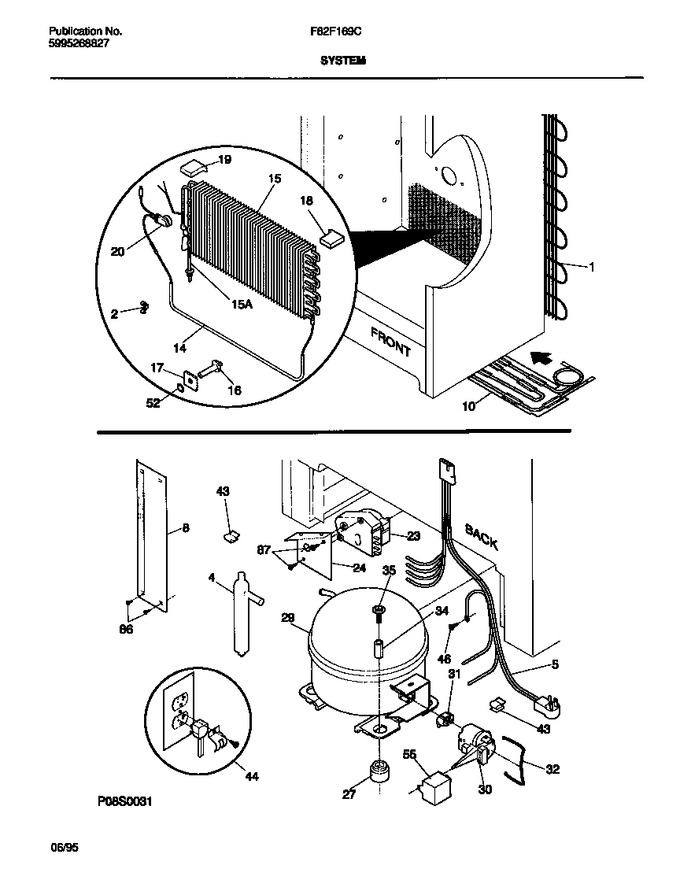

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
5	216372200		Harness-wire		Appelez-nous	-
8	216009000		Cover, Wiring		Appelez-nous	-
10	216354600		Heater-drain Pan Assy		Appelez-nous	-
14	216254600		Heater-defrost				$ 259.53
15	216195900		Evaporator (not Illustrated)				$ 246.91
15	5303288322		Evap Assy-w/heat Exchanger		Appelez-nous	-
15	5303272332		Heat Exchanger Assy		Appelez-nous	-
16	06599544		Support, Evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	5308037967		Timer, Defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5303916411		Compressor W/elec, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303276514		Overload				$ 64.94
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw, Timer				$ 8.98
