View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts

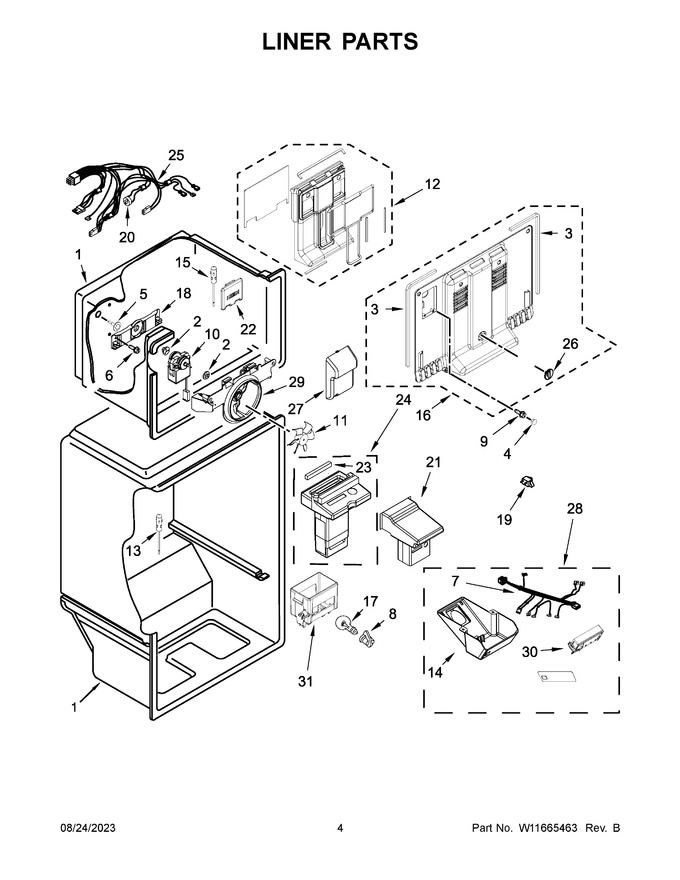

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIAC1E7B561513C5BE406C5B6330205809 | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | W10579698 | Gasket, Evaporator Cover |
|
$ 19.12 | |||||
| 4 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W11203361 | Wire Assembly, Control Box |
|
- | |||||
| 8 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 90.99 | |||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W11666272 | Assembly, Evaporator Plenum (Replaces: W10813581) |
|
- | |||||
| 13 | W11724692 | Thermistor, Refrigerator (Replaces: W10452402) |
|
Immediately | $ 28.80 | ||||
| 14 | W10569265 | Assembly, Control Box (Replaces: W11480647) |
|
$ 87.53 | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 16 | W11634632 | Cover, Evaporator (Replaces: W11510100) |
|
$ 96.81 | |||||
| 17 | W11502762 | Module, Led (Replaces: W11254095) |
|
Immediately | $ 32.13 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 33.51 | ||||
| 20 | ARI78514A0015B594BAB60352A2047B1C07 | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | W11208347 | Duct, Air (Replaces: W10570941) |
|
$ 84.38 | |||||
| 22 | 2321148 | Housing, Thermistor |
|
- | |||||
| 23 | W10702120 | Gasket, Air Diffuser |
|
- | |||||
| 24 | W11669620 | Assembly, Air Diffuser (Replaces: W11603929) |
|
- | |||||
| 25 | W11609822 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W11314500) |
|
Immediately | $ 70.51 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | W11562261 | Cover, Water Tube (Replaces: W11341625) |
|
$ 6.77 | |||||
| 28 | W11595220 | Electronic, Control (Replaces: W11476570) |
|
Immediately | $ 169.23 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W11599786 | Control, Electronic (Replaces: W11476559) |
|
- | |||||
| 31 | W10570480 | Cover, Air Diffuser |
|
- |
