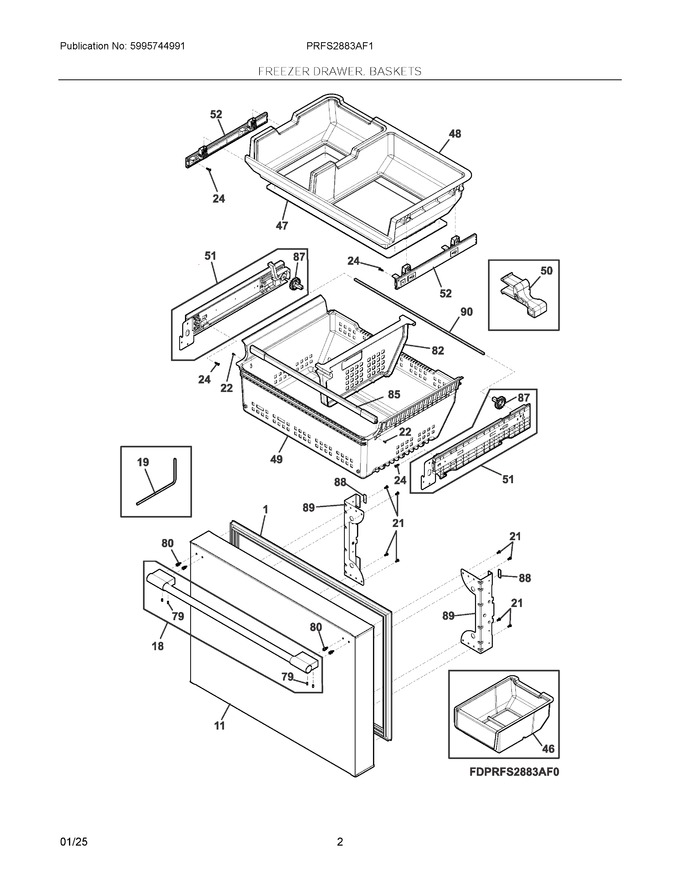

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket, Freezer Drawer, Grey (Replaces: 5304501270) |
|
Immediately | $ 86.28 | ||||
| 11 | 5304533055 | Drawer Panel, Outer, Stainless, Freezer |
|
Immediately | $ 284.45 | ||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 111.76 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 22 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 46 | 140152079053 | Container, Ice, Freezer (Replaces: 5304533090) |
|
- | |||||
| 47 | 140173321039 | Glass, Basket, Upper (Replaces: 5304531174) |
|
- | |||||
| 48 | 140152078055 | Basket, Freezer, Upper (Replaces: 5304530945) |
|
- | |||||
| 49 | 5304525892 | Basket-frzr, Lower |
|
Immediately | $ 180.64 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 15.60 | ||||
| 51 | 5304507978 | Slide Assembly, Basket, Rh Lower, W/pinion |
|
Immediately | $ 256.33 | ||||
| 52 | 5304536913 | Slide Assembly, Basket, Rh Upper (Replaces: 5304531251) |
|
Immediately | $ 50.45 | ||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 5304529930 | Divider, Lower Basker, Freezer |
|
$ 40.19 | |||||
| 85 | 242139301 | Beam, Support, Divider, Lower Basket |
|
$ 73.71 | |||||
| 87 | 5304507999 | Pinion, Gear |
|
$ 10.62 | |||||
| 88 | 241979601 | Bumper, Rubber, White, Upper Basket |
|
$ 22.68 | |||||
| 89 | 5304509676 | Bracket, Freezer Drawer, (2) |
|
$ 77.36 | |||||
| 90 | 241770705 | Bar, Timing (Replaces: 241770702) |
|
$ 50.66 | |||||
| 51A | 5304507979 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 249.03 | ||||
| 52A | 5304536914 | Slide Assembly, Basket, Lh Upper (Replaces: 5304531252) |
|
$ 50.45 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NIB | 242039701 | Screw, Shoulder, #10-16 Type Ab, Upper Slides, W/washer |
|
$ 13.46 | |||||
| NIB | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.26 |
