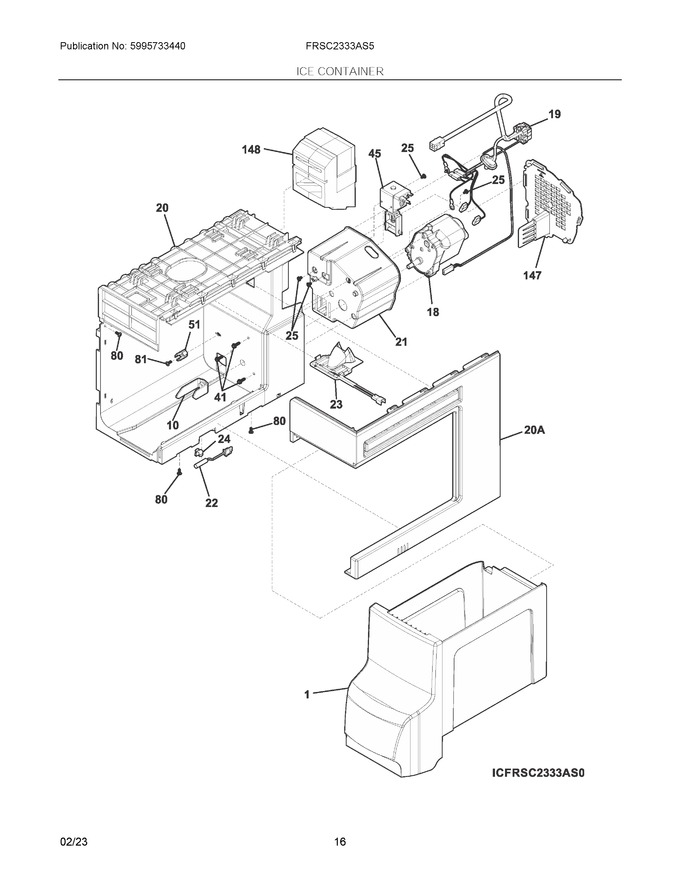

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527136		Ice Container Assembly, W/moving Parts		Appelez-nous	-
10	241829002		Drive Bar'				$ 18.60
18	5304527039		Motor, Auger			Immediately	$ 172.09
19	5304521770		Harness, Slim Twist, Ice Maker				$ 86.71
20	242303501		Housing, Slim Ice Maker				$ 113.76
21	242305203		Housing, Cover Motor, Solenoid				$ 25.31
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	5304504455		Fill Cup, W/heater			Immediately	$ 97.07
24	241519401		Clip, Sensor				$ 8.51
25	218359202		Screw, 8-32 X 1/4   (Replaces: 241842101)				$ 10.63
33	241684802		Spacer				$ 9.10
34	241689802		Spacer				$ 8.34
41	240555005		Screw, Hex Washer Head, 8-32 X 3/8				$ 11.38
42	5308000039		Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head		Appelez-nous	-
53	241690402		Pin-spiral, Fixed Blades				$ 19.13
55	241690306		Washer				$ 49.62
56	241690201		E-ring				$ 19.13
80	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
81	241953908		Screw, Quad Hilo, #8-18				$ 4.26
147	140041623020		Motor, Cover   (Replaces: 5304504451)		Appelez-nous	-
148	5304504447		Duct Air, Slim Icemaker, Assembly				$ 20.48
20A	242303701		Housing, Outer Cover, Slim Icemaker				$ 91.29
21A	242015001		Screw, 8-18 X 1/2			Immediately	$ 16.30
45A	241675902		Spring-solenoid				$ 6.38
45B	241676001		E-ring-solenoid				$ 70.16
45C	241676101		Actuator-solenoid				$ 64.49
45D	241675804		Solenoid, 115v		Appelez-nous	-
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NI	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26
