New Model Search:

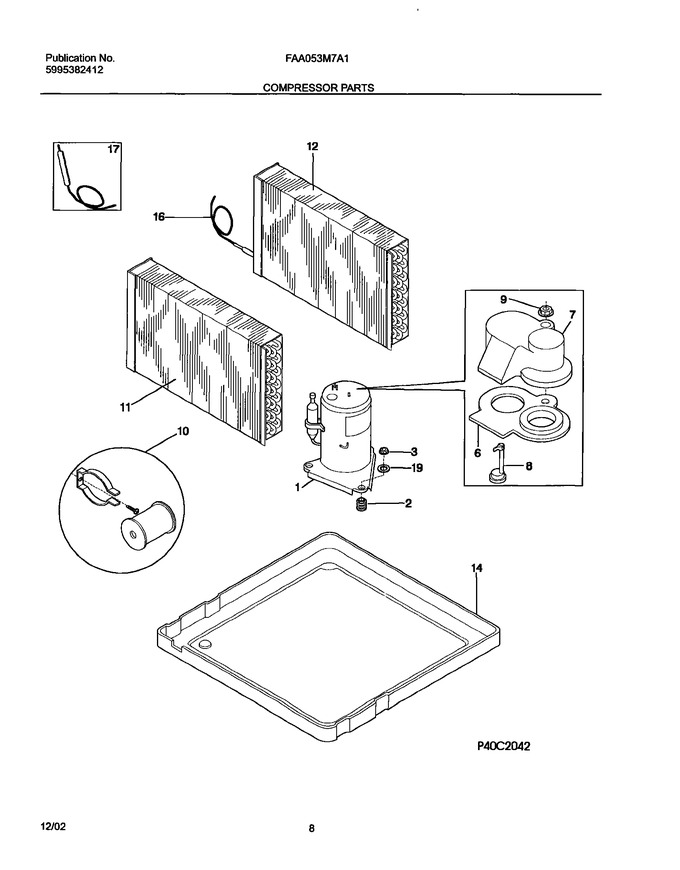

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303286606 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket - Terminal Cover |
|
- | |||||
| 7 | 5304405245 | Cover,compr Terminal |
|
- | |||||
| 9 | 3201670 | Nut,terminal Cover |
|
- | |||||
| 14 | 309650801 | Base,compressor Mtg ,with Studs |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 309616915 | Compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309637405 | Evaporator |
|
- | |||||
| F12 | 5303307226 | Condenser |
|
- | |||||
| F16 | 5303209546 | Capillary Tube,40 Inch Long |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5303311029 | Overload Protector |
|
- |
