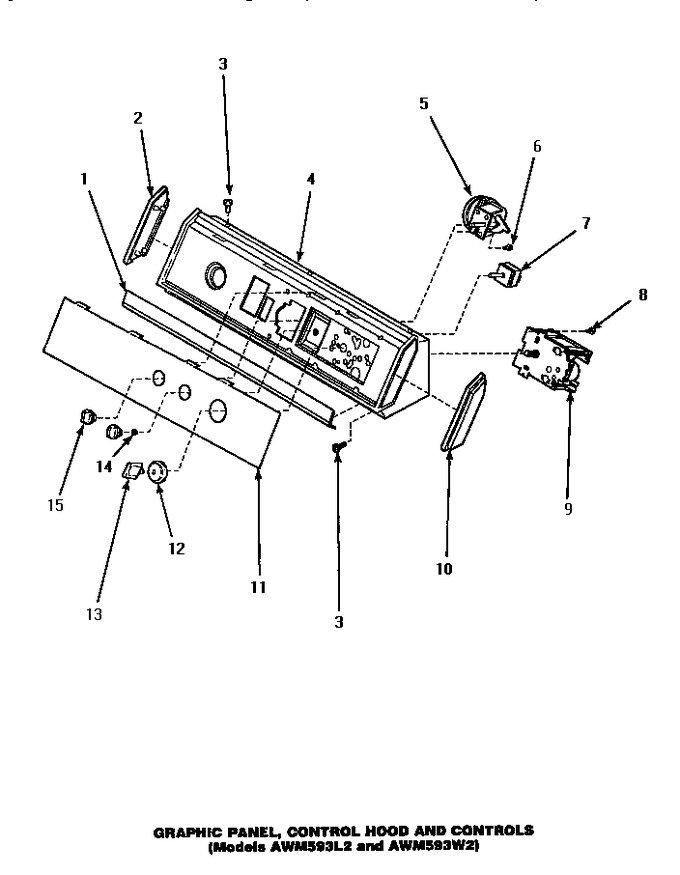

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33123R		Trim		Appelez-nous	-
2	31249		Cap,end-l.h.-chrome		Appelez-nous	-
3	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
4	31811		Assy,hood & Mounting B		Appelez-nous	-
5	201927P		Pressure Switch   (Replaces: 36045)				$ 85.88
6	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
7	32189		Switch, Temp		Appelez-nous	-
8	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
9	36608P		Timer, 4 Cycle   (Replaces: 36608)				$ 435.29
10	31248		Cap,end-r.h.-chrome		Appelez-nous	-
11	DE81-07996A		Panel, Graphics   (Replaces: 36618)				$ 116.87
12	33817		Assy,timer Skirt-black		Appelez-nous	-
13	33897		Knob,timer-washer-blac				$ 22.96
14	57584		Nut		Appelez-nous	-
15	33610		Assy,knob-rotary-black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
