Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 36226 Pad, Bumper .25 Special Order $ 3.45

2 34499 Screw, No.10b X 1/4 Tap In Hx Appelez-nous -
3 56392 Screw,8-18 X 3/8 Tappi Appelez-nous -
4 Y00000000 See Note Ground Wire, Green Appelez-nous -
5 Y27103 Hinge,hold-down Lug Appelez-nous -
6 34475WP Cabinet Appelez-nous -
6 34475HP Kit,service Cabinet Appelez-nous -
6 34475LP Cabinet Appelez-nous -
7 36037 Bracket,sll-left Special Order $ 77.94

8 WP27001200 Screw   (Replaces: 27196) Special Order $ 6.91

9 34443 Assy,leg & Stabilier In-Stock Immediately $ 44.62

10 35148 Screw,1/4-14 X 3/8 Hx Hd Special Order $ 6.95

11 4098G Bracket,sll-right   (Replaces: 36036) Special Order $ 36.76

12 34434P Assy Nut/leg Base Appelez-nous -
13 22003428 Leveling Leg   (Replaces: Y34319) In-Stock Immediately $ 14.41

14 DE81-06981A Snubber Pad & Isolator   (Replaces: 36108) Special Order $ 163.72

15 34318 Rubber Foot In-Stock Immediately $ 4.74

16 WP210385 Locknut   (Replaces: Y21899) Special Order $ 6.26

17 34656LP Assy,front Panel Appelez-nous -
17 34656HP Assy,front Panel Appelez-nous -
17 34656WP Assy,front Panel Appelez-nous -
18 28102 Locator,panel Appelez-nous -
19 39733 Screw, Tapping   (Replaces: 32671) Special Order $ 6.95

20 Y35097 Brace, Frt Pnl Appelez-nous -
21 35865 Clip,hold-down Front Panel Special Order $ 6.95

22 56128 Pad, Bumper   (Replaces: Y56128) Special Order $ 6.95

23 56079 Locater, Panel In-Stock Immediately $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

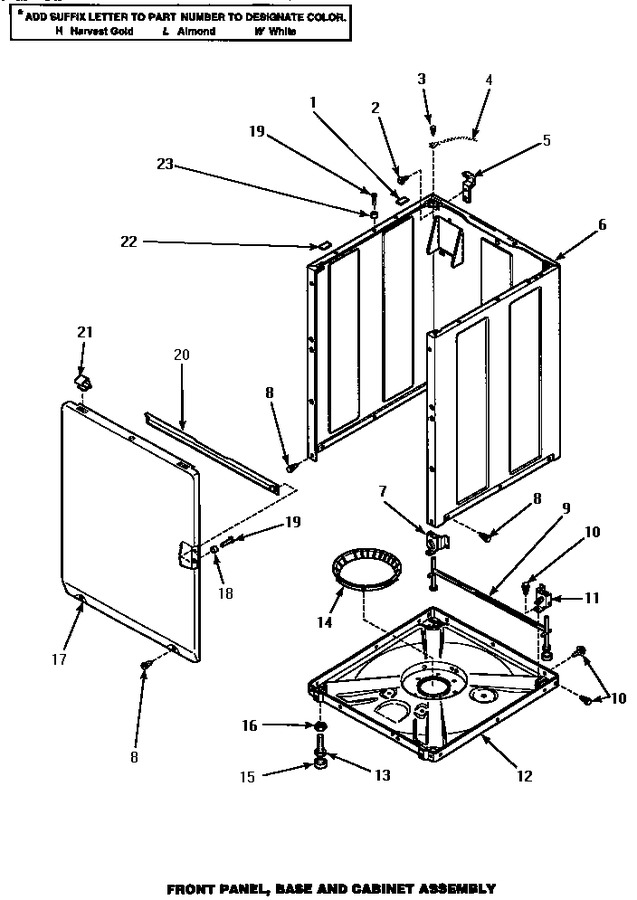

Diagram for AWM593W
