SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

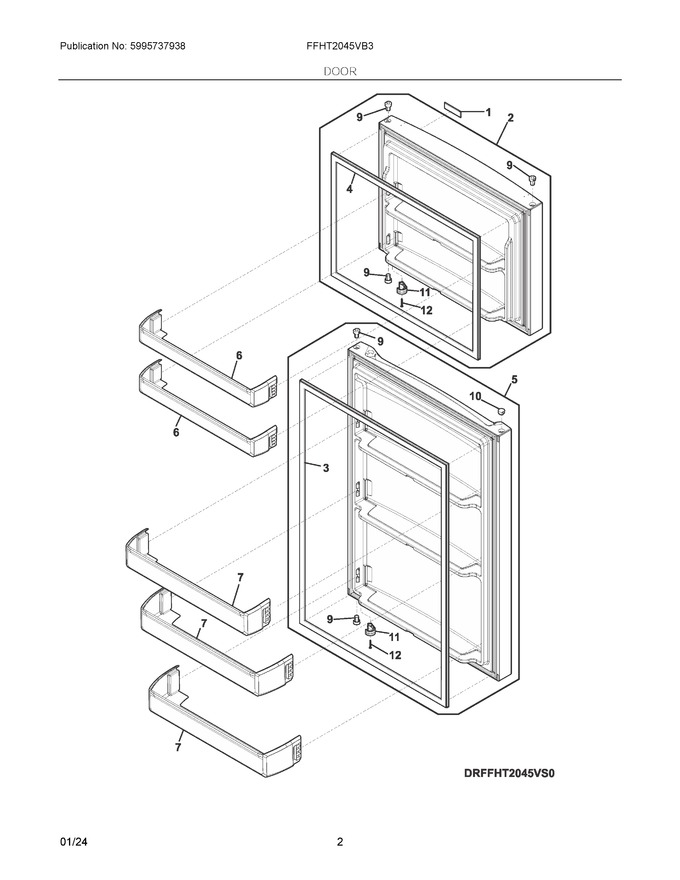

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511145		Badge, Frigidaire, Black				$ 4.55
2	5304532785		Door-frz Foamed 30w Pk Blk, 2   (Replaces: 5304529521)			Immediately	$ 229.37
3	5304528905		Gasket, Door, Black, Fresh Food				$ 205.12
4	5304528906		Gasket, Door, Black, Freezer			Immediately	$ 186.95
5	5304532786		Door-ff Foamed 30w Pk Blk, 5   (Replaces: 5304529515)				$ 286.95
6	5304524054		Bin, Door, White, Freezer				$ 50.61
7	5304524055		Bin, Door, 6", Refrigerator			Immediately	$ 81.06
9	5304522193		Bearing, Hinge, Black				$ 7.59
10	5304522186		Cover, Hinge Bearing, Black		Appelez-nous	-
11	5304522237		Hook, Door Closer, Black				$ 4.55
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38

    View Diagram in Separate Window       Print Part List
