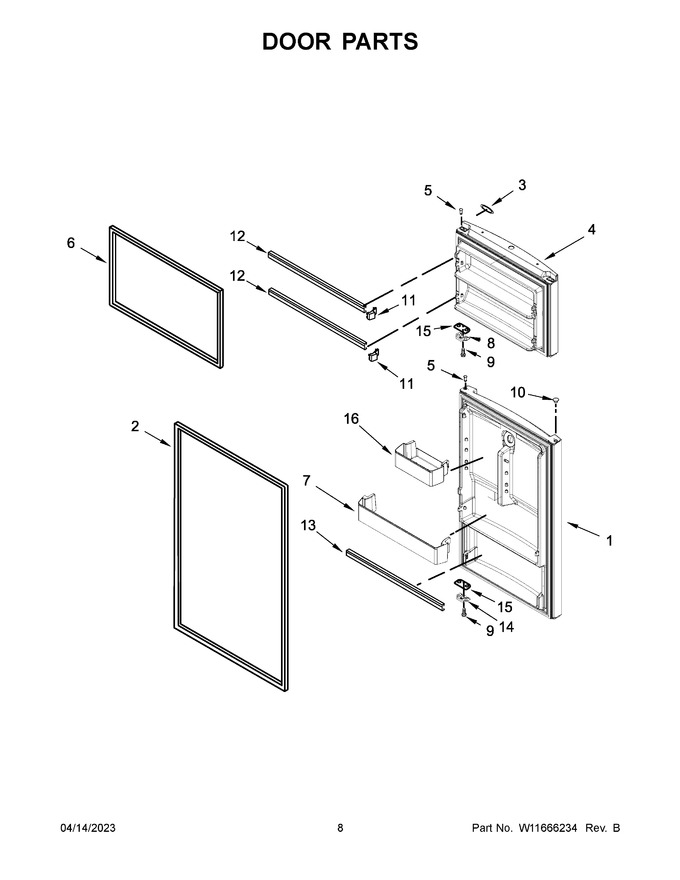

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11645694		Refrigerator Door (includes Illustration 2) (white)   (Replaces: W11634841)				$ 457.38
2	2319266W		Gasket, Door (white)   (Replaces: 2264729)				$ 295.55
3	W11428492		Badge   (Replaces: W11046244)				$ 71.63
4	LW10803976		Freezer Door (includes Illustration 6) (white)   (Replaces: W10803976)				$ 298.24
5	W11759045		Thimble (white)   (Replaces: W10492018)			Immediately	$ 10.58
6	WP2319263W		Gasket, Door (white)   (Replaces: W10840863)			Immediately	$ 135.93
7	W11230940		Trivet   (Replaces: W10805892)				$ 84.58
8	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
9	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
10	WP2212648		Plug, Hole (white)   (Replaces: 2212648)				$ 7.02
11	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
12	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 83.25
13	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 104.87
14	W10492012		Bracket, Door Stop				$ 14.45
15	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
16	W11190821		Movable, Bin   (Replaces: W10805890)				$ 138.02
10A	WP2212651		Plug, Hole (black)   (Replaces: 2212651)				$ 20.75
1A	W11645693		Refrigerator Door (includes Illustration 2) (black)   (Replaces: W11616141)			Immediately	$ 461.14
2A	2319266B		Gasket, Door (black)   (Replaces: 2264725)				$ 322.72
4A	W11645692		Freezer Door (includes Illustration 6) (black)   (Replaces: W11624190)				$ 311.79
5A	W11189115		Thimble (black)   (Replaces: W10334042)				$ 10.89
6A	WP2319263B		Gasket, Door (black)   (Replaces: W10843447)			Immediately	$ 229.95
