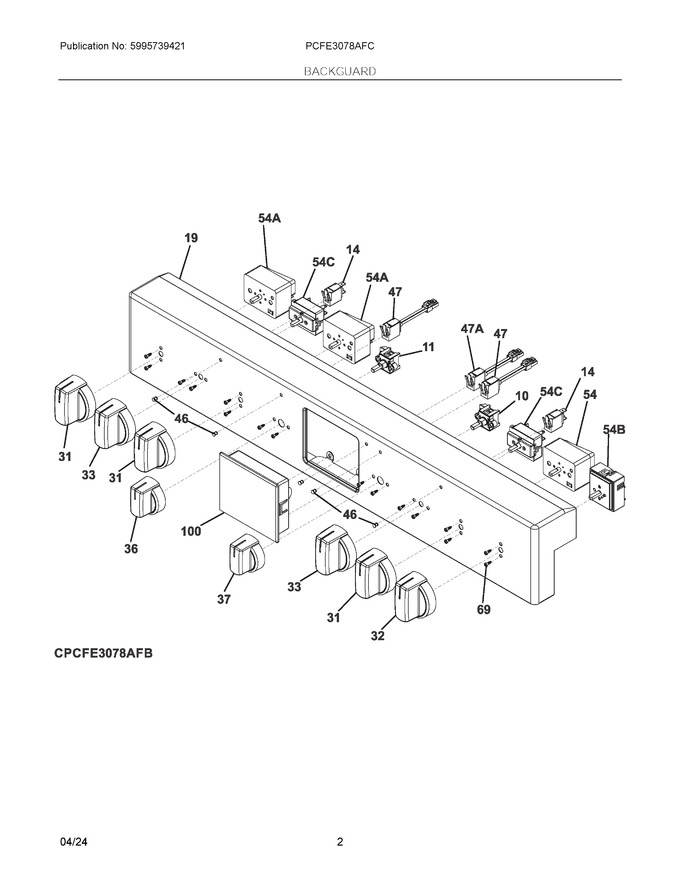

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 808843108 | Potentiometer, Oven Temp |
|
Immediately | $ 76.97 | ||||
| 11 | 5304500591 | Potentiometer, Oven Mode |
|
Immediately | $ 126.30 | ||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 19 | 5304522599 | Panel, Control, Stainless |
|
$ 295.61 | |||||
| 31 | 5304522585 | Knob, Switch, Single |
|
$ 91.01 | |||||
| 32 | 5304502428 | Knob, Switch, Stainless, Dual |
|
$ 120.49 | |||||
| 33 | 5304502429 | Knob, Switch, Stainless, Warm Zone |
|
Immediately | $ 139.63 | ||||
| 36 | 809137904 | Knob, Selector, Oven |
|
$ 87.97 | |||||
| 37 | 809137903 | Knob, Temperature, Oven |
|
$ 94.04 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 47 | 316022508 | Light/lamp, Indicator, Blue, Oven |
|
$ 27.30 | |||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 100 | 5304526196 | Control-frig Pro Asm Elect, 100# |
|
Immediately | $ 517.43 | ||||
| 47A | 316022510 | Light/lamp, Indicator, Blue, Preheat |
|
$ 31.10 | |||||
| 54A | 316436001 | Switch, Infinite, Large Element |
|
Immediately | $ 51.68 | ||||
| 54B | 140173679014 | Switch, Infinite, Radiant Dual (Replaces: 5304522918) |
|
Immediately | $ 33.31 | ||||
| 54C | 5304537897 | Switch-infinite, Warmer Drw/zone (Replaces: 316471601) |
|
Immediately | $ 36.11 | ||||
| NI | 5304517680 | Harness, Wiring, Oven Control |
|
$ 46.41 | |||||
| NI | 5304525010 | Harness, Backsplash, Es501e |
|
$ 184.13 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
