SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer & Middle Drawer


03 - Fresh Food Doors


04 - Cabinet

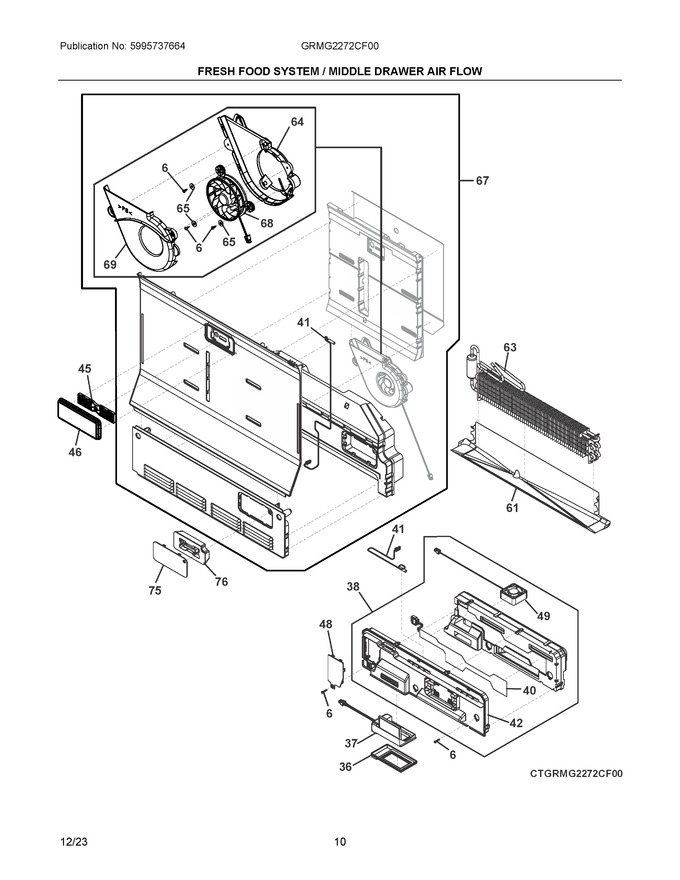

05 - Shelves


06 - Fresh Food System / Middle Drawer Air Flow


07 - Freezer System / Machine Compartment


08 - Controls & Water Dispenser


09 - Ice Maker


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
36	5304523686		Seal, Baffle Assembly				$ 32.96
37	5304519166		Baffle Assembly, Air Damper, Middle Drawer			Immediately	$ 129.08
38	5304519167		Cover Assembly, Air Flow, Middle Drawer, W/fan-heater				$ 93.40
40	5304523056		Heater Assembly, Middle Drawer				$ 88.93
41	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
42	5304519170		Cover, Air Duct, Middle Drawer		Appelez-nous	-
45	FRGPAAF2		Frig Pureair Af2 Air Filter C6			Immediately	$ 43.10
46	140289223020		Cover, Air Filter, Fresh Food   (Replaces: 5304529542)		Appelez-nous	-
48	5304519172		Cover, Window, Middle Drawer				$ 11.17
49	5304519173		Fan Assembly, Middle Drawer, W/sleeve			Immediately	$ 137.93
61	5304519180		Drain Trough, Evaporator, Fresh Food		Appelez-nous	-
63	5304529599		Evaporator, Assembly, Fresh Food, Twin				$ 141.81
64	5304526813		Plate, Fan Mounting, Fresh Food		Appelez-nous	-
65	5304519183		Washer, Flat		Appelez-nous	-
67	5304529600		Cover Assembly, Air Duct, Fresh Food, Complete				$ 185.36
68	5304536608		Fan Assembly, Evaporator   (Replaces: 5304526804)				$ 111.33
69	5304526812		Housing, Fan, Fresh Food		Appelez-nous	-
75	5304519189		Cover, Window, Fresh Food		Appelez-nous	-
76	5304522062		Insulation, Window, Eps, Fresh Food		Appelez-nous	-
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
