SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

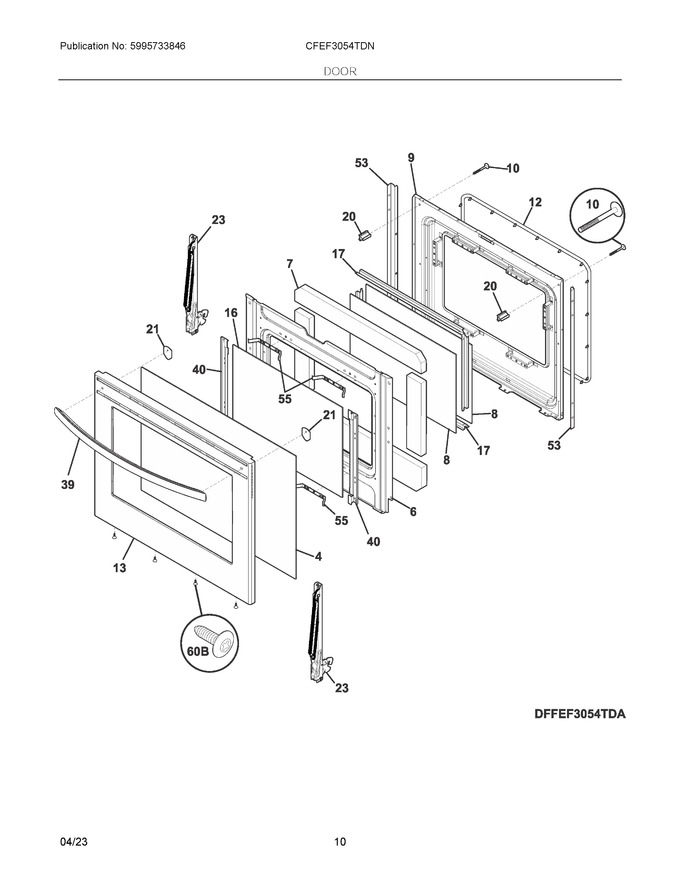

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil			Immediately	$ 213.87
6	316406328		Shield, Wool				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423719		Liner, Oven Door				$ 153.20
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 31.17
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	5304532516		Panel, Oven Door, Black Stainless, Outer   (Replaces: 316603904)				$ 143.33
16	316552801		Glass, Door, Airwash				$ 37.93
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284100		Spacer, Door Handle, (2)				$ 14.89
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575956		Hinge, Oven Door, Yellow			Immediately	$ 56.88
39	140067504104		Handle, Door, Black Stainless, 39   (Replaces: 5304529980)		Appelez-nous	-
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
53	5304532042		Shield, Filler, Black, Side, 39				$ 25.79
55	316408300		Bracket, Glass Support, (4)				$ 21.23
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316483102		Label, Anti-tip				$ 3.56
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
