01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

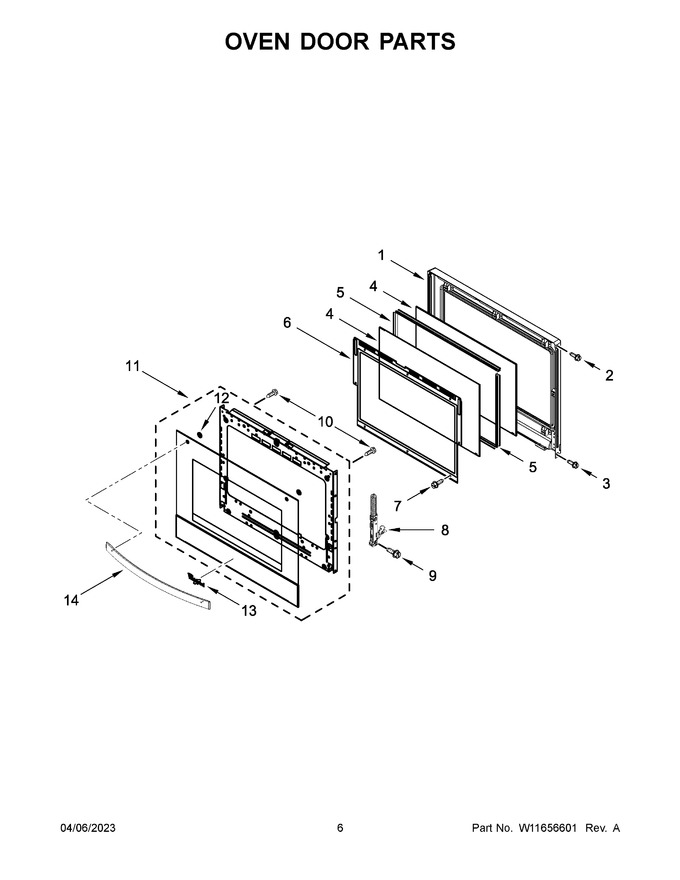

| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 260.41 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 12.66 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 212.32 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11302730) |
|
Immediately | $ 61.79 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 69.89 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11598229 | Hinge, Door (left) (Replaces: W11394143) |
|
$ 73.84 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 6.98 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 12.65 | ||||
| 11 | W11653626 | Door Assembly (stainless) (Replaces: W11499216) |
|
$ 573.55 | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 13 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 14 | W11648756 | Handle Assembly (stainless) (Replaces: W11532517) |
|
Immediately | $ 94.45 | ||||
| 8A | W11598230 | Hinge, Door (right) (Replaces: W11394144) |
|
$ 73.84 |
