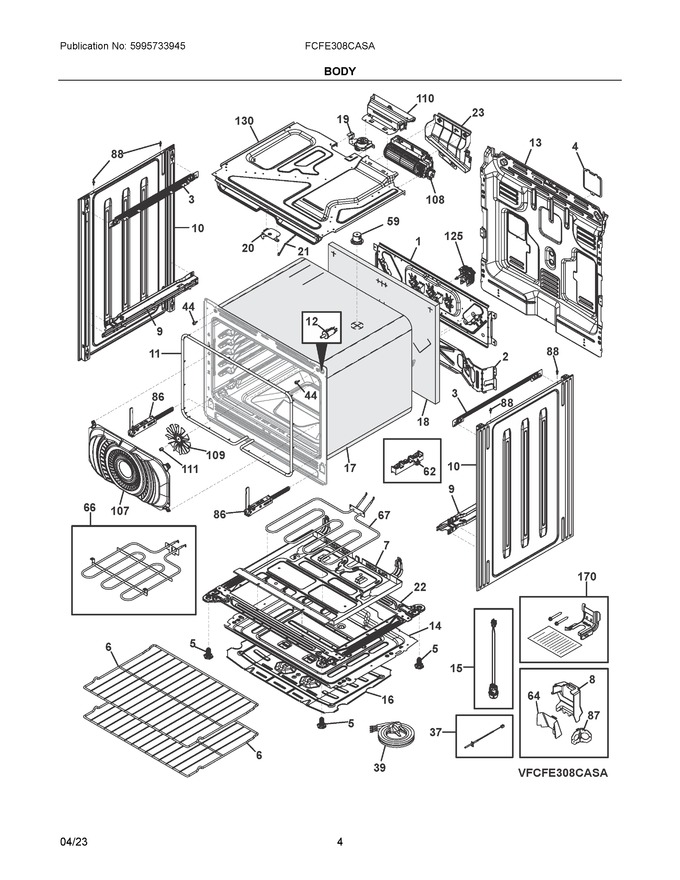

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533416		Bracket, Rear Components, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 61.12
3	5304526493		Bracket, Side Panel, Cooling				$ 15.12
4	5304528328		Cover, Wiring				$ 8.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	5304531722		Rack, Oven, Flat			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304528549		Cover, Terminal Block			Immediately	$ 37.81
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 34.48
10	5304526334		Panel, Body Side, Black			Immediately	$ 138.48
11	5304526243		Seal, Door			Immediately	$ 51.87
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	5304533417		Shield, Small, Rear Wires		Appelez-nous	-
14	5304533432		Shield, Insulation, Lower				$ 85.34
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 36.50
16	5304533453		Shield, Drawer Storage, Full		Appelez-nous	-
17	5304538075		Insulation, Oven Wrapper   (Replaces: 5304528186)		Appelez-nous	-
18	5304528188		Insulation, Oven Back		Appelez-nous	-
19	5304528260		Motor, Latch, W/bracket			Immediately	$ 48.44
20	5304528257		Latch Assembly				$ 18.95
21	5304528259		Rod, Latch				$ 8.13
22	5304533415		Base Rail, Assembly			Immediately	$ 137.66
23	5304533976		Guard, Lower, Plastic, Black		Appelez-nous	-
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 49.14
39	5304533885		Power Cord, Electric Servc			Immediately	$ 152.38
44	316517600		Bumper, Front, Main				$ 12.05
59	5304528243		Tube, Oven Vent				$ 21.21
62	5303935271		Terminal Block Kit				$ 73.56
64	5304528550		Shield, Terminal Block				$ 9.50
66	140156193181		Element, Broil, 4000w, 6 Pass   (Replaces: 5304533418)				$ 72.58
67	140156196176		Element, Hidden Bake, 8 Pass, 2500w, 240v   (Replaces: 5304526373)			Immediately	$ 56.89
86	5304528099		Hinge, Oven Door, Green, 2 Spring				$ 63.20
87	5304526449		Bracket, Power Cord				$ 8.29
88	316099501		Pin, Guide		Appelez-nous	-
107	5304526364		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
108	5304537802		Blower Assembly   (Replaces: 5304528167)			Immediately	$ 111.38
109	5304525455		Blade, Fan, Convection				$ 14.41
110	5304533437		Duct Assembly, Cooling				$ 38.84
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304528166		Motor, Convection Fan				$ 87.24
130	5304528291		Duct Assembly, Cooling, Upper				$ 140.72
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 23.06
NI	5304533450		Harness, Wiring, Main, Cavity				$ 111.68
NI	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
NI	5304533471		Screw, T20, 4.4 X 13		Appelez-nous	-
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304533454		Harness, Wiring, Low Voltage				$ 70.17
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NIA	387856311		Screw, 4.2 X 10				$ 3.03
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
NIB	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
