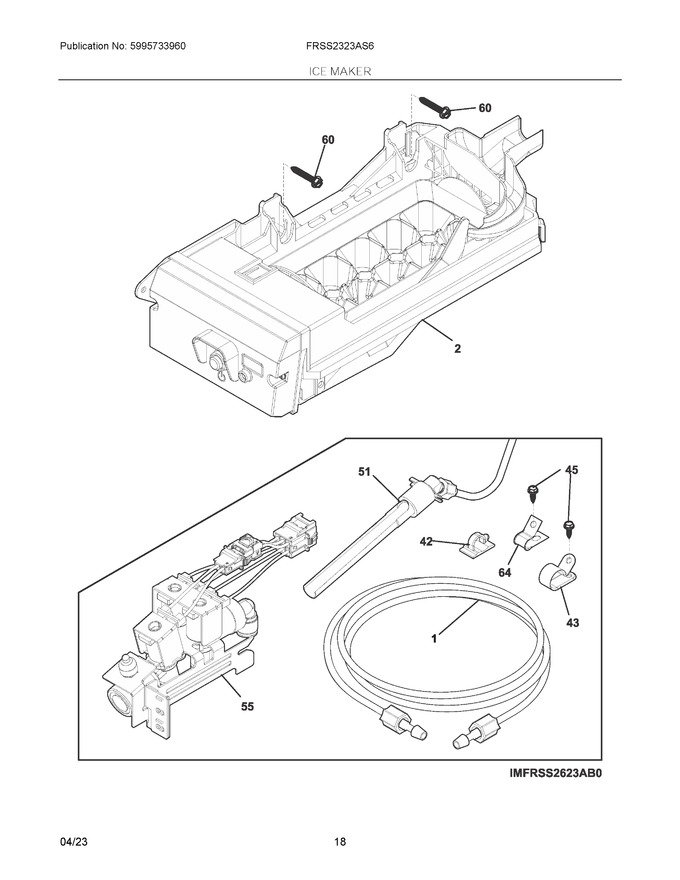

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| 2 | 5304532554 | Ice Maker, Assembly (Replaces: 5304532178) |
|
Immediately | $ 139.33 | ||||
| 20 | 5304455677 | Screw, 8-32 X 3/8 |
|
- | |||||
| 21 | 241798231 | Ice Stripper (Replaces: 5304456672) |
|
Immediately | $ 200.97 | ||||
| 22 | 5304456673 | Shut-off Arm |
|
- | |||||
| 23 | 5304456674 | Screw, M 4x25 #2, Mold-to-support, (2) |
|
- | |||||
| 24 | 5304456675 | Lever Arm |
|
$ 66.63 | |||||
| 25 | 5304456676 | Screw, M 4x12.8 #2, Lever Arm/sprt |
|
- | |||||
| 26 | 5304420654 | Screw-thermo/sprt, 4-24 X 0.375, (4) |
|
- | |||||
| 42 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| 43 | 240396802 | Clamp, Tube/wiring, Nylon, Black/natural |
|
- | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 51 | 241850624 | Tube Assembly, Water Fill Extn, Valve To Im Inl (Replaces: 241850622) |
|
Immediately | $ 18.25 | ||||
| 55 | 5304538492 | Valve, Water, Triple Solenoid (Replaces: 5304525994) |
|
Immediately | $ 88.59 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000 |
|
$ 12.76 | |||||
| 61 | 218721500 | Bracket-leveling, Ice Maker (Replaces: 5304456686) |
|
$ 73.00 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| NI | 241798231 | Ice Maker, Radius Cube, 115 V, Svce (Replaces: 241642501) |
|
Immediately | $ 200.97 | ||||
| NI | 5304456692 | Washer |
|
- | |||||
| NI | 5304456693 | Nut, M 3.5 |
|
$ 13.46 | |||||
| NI | 5304456689 | Washer (Replaces: 5304456737) |
|
$ 77.26 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NI | 5304525991 | Harness, Wiring, Ice Maker, & Auger Assy |
|
$ 63.45 | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NIA | 218976419 | Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door |
|
$ 22.68 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NID | 218976439 | Tube, Water, 32", Yellow, Valve, To Door |
|
$ 19.13 | |||||
| NIE | 242220154 | Tube, Water, 87.6", Brown/tan, Valve To Filter (Replaces: 242220133) |
|
Immediately | $ 12.44 | ||||
| NIF | 242220134 | Tube, Water, 91.4", Natural, Filter Base To, Secondary Valve |
|
$ 21.99 |
