Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11617232 Element, Broil   (Replaces: W11238160) In-Stock Immediately $ 112.61

2 WPW10317431 Rack, Oven   (Replaces: W10317431) Special Order $ 113.99

3 W10318198 Tray, Hidden Bake Special Order $ 167.85

4 7101P43460 Screw Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10282957 Crossbar, Hidden Bake Tray Special Order $ 40.69

7 W11545804 Element, Bake   (Replaces: W11292248) In-Stock Immediately $ 92.28


    View Diagram in Separate Window     Print Icon   Print Part List

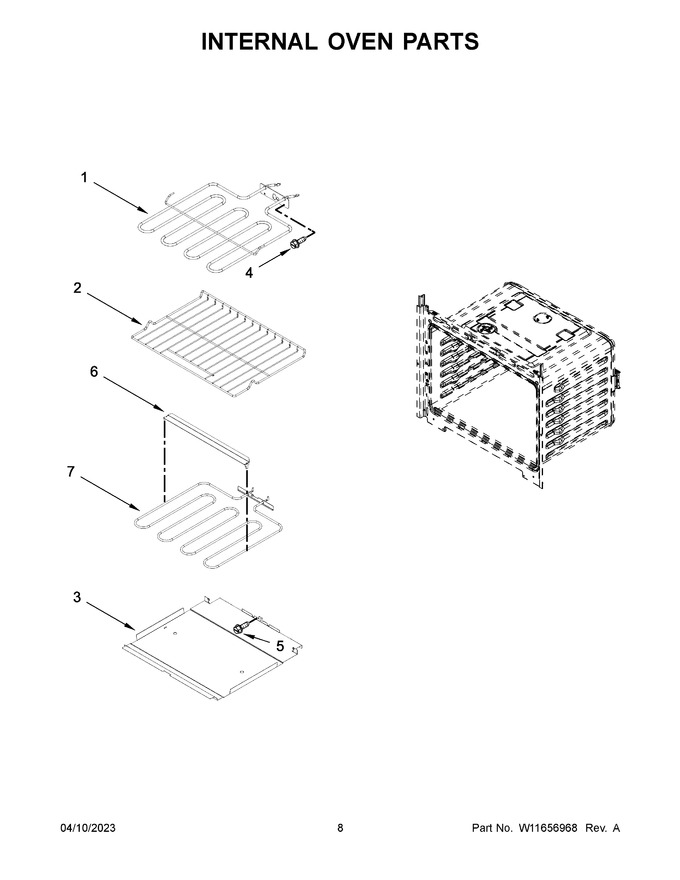

Diagram for WOES3027LS00
