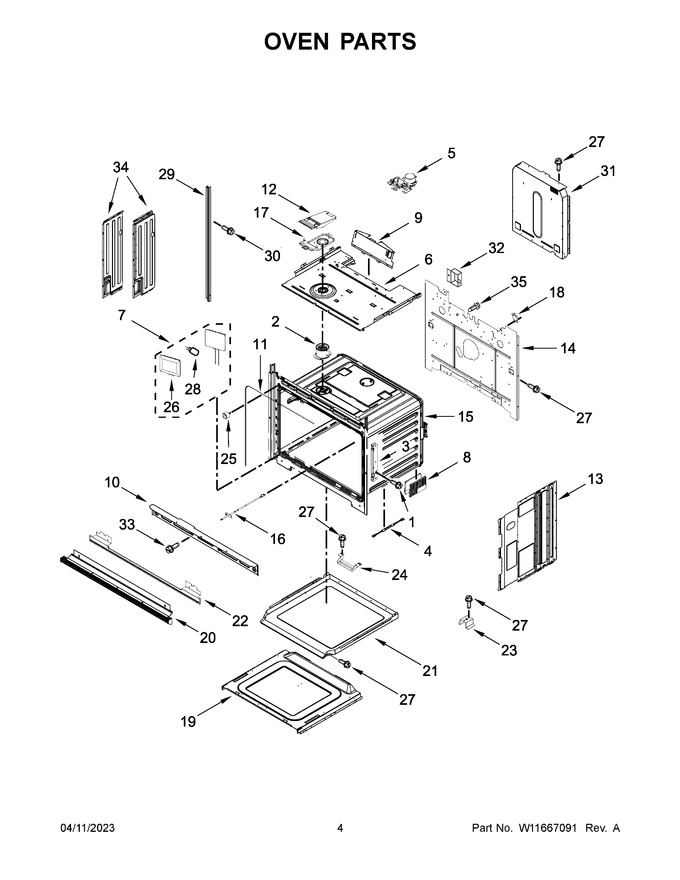

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 21.89
3	W11752201		Receiver, Hinge (upper)   (Replaces: W11100732)				$ 39.91
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 15.55
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 59.88
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 92.12
8	W11598170		Foot, Base   (Replaces: W11245118)				$ 24.89
9	W10904163		Deflector, Blower			Immediately	$ 145.53
10	W11715951		Vent, Top 30 In   (Replaces: W11334857)				$ 88.63
11	W11676903		Gasket   (Replaces: W11262567)			Immediately	$ 62.20
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 69.42
14	W11223327		Back, Chassis (upper)		Appelez-nous	-
15	NP		Cabinet (not Serviced)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 35.78
17	W11256423		Base, Vent Exhaust		Appelez-nous	-
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 65.03
20	W11648980		Assembly, Bottom Vent (stainless)   (Replaces: W11467754)			Immediately	$ 166.85
21	W11244446		Duct, Bottom Chassis				$ 60.21
22	W11714646		Trim, Bottom Vent (black)   (Replaces: W11560859)				$ 77.43
23	W11135135		Support, Air Channel				$ 30.99
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 33.30
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 20.03
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
27	7101P42660		Screw		Appelez-nous	-
28	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
29	W11235463		Cover, Side Trim (black (left))				$ 76.09
30	W11602623		Screw   (Replaces: W11404000)				$ 12.20
31	W11165250		Duct, Chassis Back (upper)				$ 65.42
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.47
34	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 63.48
35	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 6.47
29A	W11235462		Cover, Side Trim (black (right))				$ 76.09
34A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 63.48
NI	W11602627		Insulation, Cavity   (Replaces: W11234758)				$ 70.72
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
