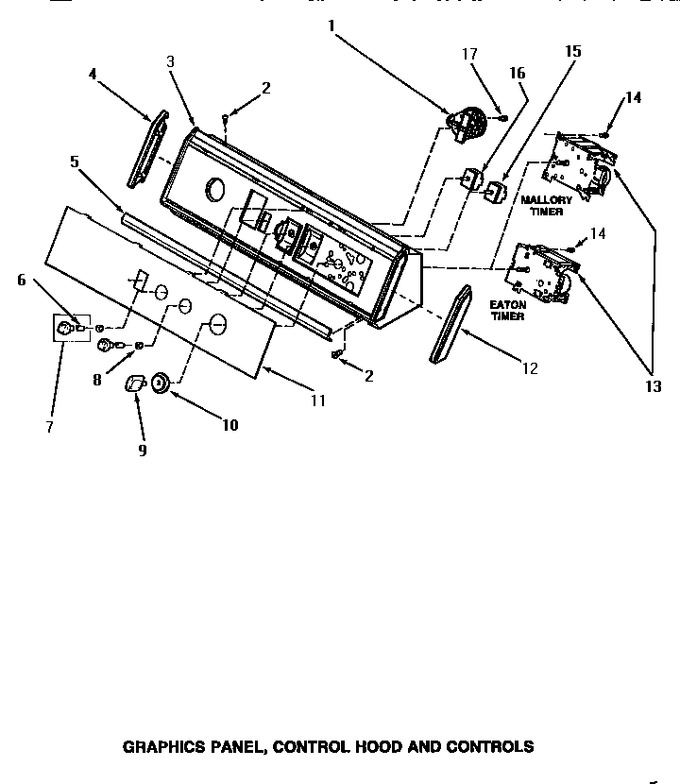

10 - Graphics Panel, Control Hood & Controls


11 - Inlet/fill Hose/back Fl Preventer & Brkt


12 - Leveling Leg (change)


13 - Mixing Valve Assy (eaton Company)


14 - Motor, Mtg Bracket, Belts & Idler Assy


15 - Outer Tub, Cover & Pressure Hose


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


20 - Transmission Tube Seal (change)


21 - Wire Harnesses & Power Cord


22 - Wire Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33959		Switch,pressure-slide		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	34215		Assy, Hood & Mtg Plate		Appelez-nous	-
4	31249		Cap,end-l.h.-chrome		Appelez-nous	-
5	33123R		Trim		Appelez-nous	-
6	10519		Retainer		Appelez-nous	-
7	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31
8	57584		Nut		Appelez-nous	-
9	33898		Timer Knob White		Appelez-nous	-
10	33818		Timer Knob Skirt		Appelez-nous	-
11	33787		Panel, Graphic		Appelez-nous	-
12	31248		Cap,end-r.h.-chrome		Appelez-nous	-
13	31240		Timer		Appelez-nous	-
14	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
15	33690		Switch,selector-cycle		Appelez-nous	-
16	24392		Switch Temp		Appelez-nous	-
17	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
	NOTE:		Prior To Sn R1624440yk, It Is Not Recommended The Air Intake Hole Beplugged By The Orange Plug 34340 On The Back Flow Preventer 27118. The Water Fill Will Be		Appelez-nous	-
