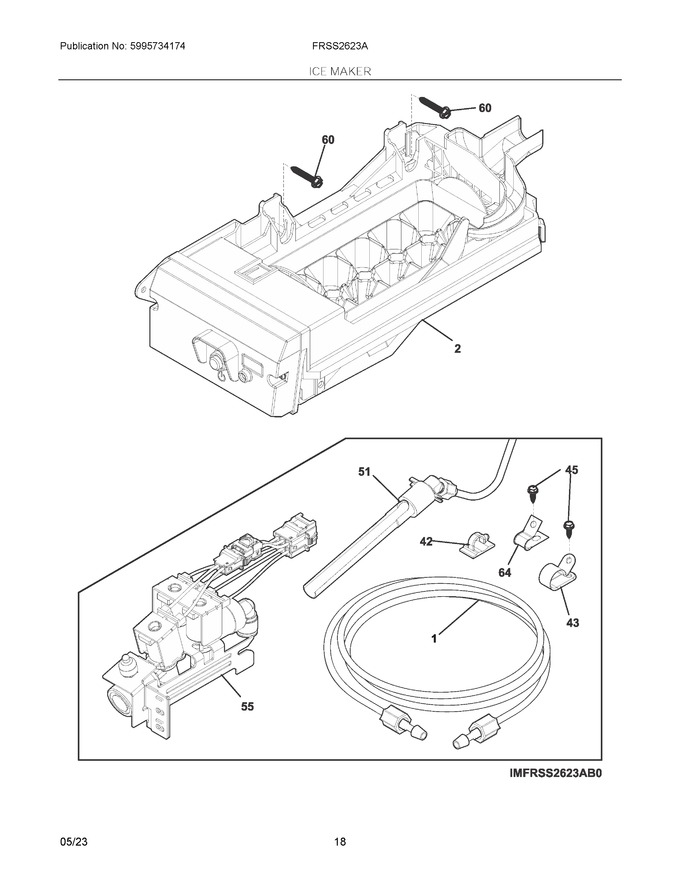

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| 2 | 5304532554 | Ice Maker, Assembly (Replaces: 5304525923) |
|
Immediately | $ 139.33 | ||||
| 42 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 51 | 241796405 | Tube-water Fill, Extension |
|
$ 18.43 | |||||
| 55 | 5304538492 | Valve, Water, Triple Solenoid (Replaces: 5304525994) |
|
Immediately | $ 88.59 | ||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 51A | 241850624 | Tube Assembly, Water Fill Extn, Valve To Im Inl (Replaces: 241850622) |
|
Immediately | $ 18.25 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 218976439 | Tube, Water, 32", Yellow, Valve, To Door |
|
$ 19.13 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 |
