SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

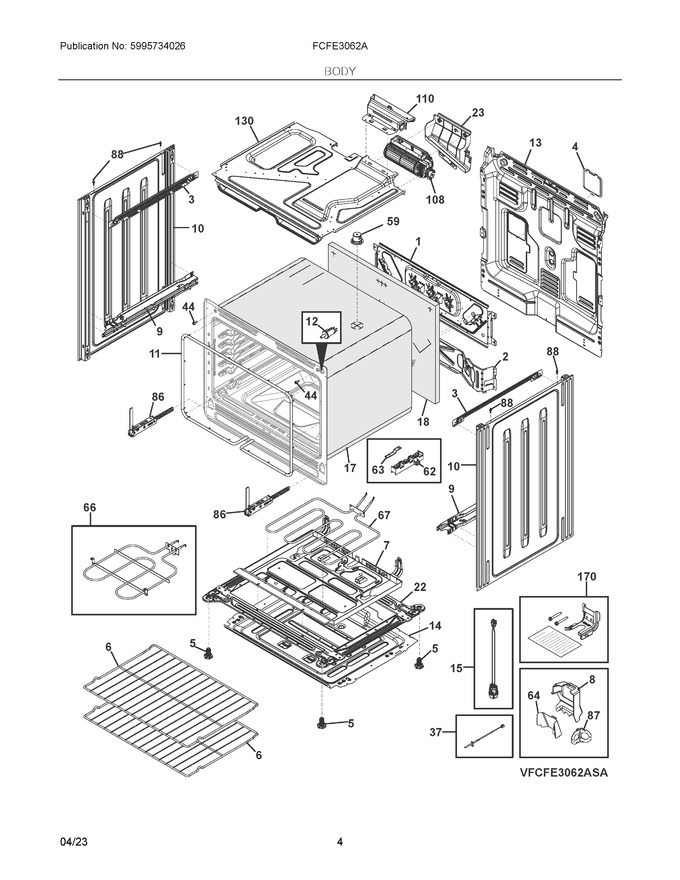

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533416		Bracket, Rear Components, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 61.12
3	5304526493		Bracket, Side Panel, Cooling				$ 15.12
4	5304528328		Cover, Wiring				$ 8.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	5304531722		Rack, Oven, Flat			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304528549		Cover, Terminal Block			Immediately	$ 37.81
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 34.48
10	5304526334		Panel, Body Side, Black			Immediately	$ 138.48
11	5304526243		Seal, Door			Immediately	$ 51.87
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	5304533417		Shield, Small, Rear Wires		Appelez-nous	-
14	5304533432		Shield, Insulation, Lower				$ 85.34
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 36.50
17	5304533424		Insulation, Wrapper, Oven		Appelez-nous	-
18	140299167019		Insulation, Oven Back   (Replaces: 5304528193)		Appelez-nous	-
22	5304533415		Base Rail, Assembly			Immediately	$ 137.66
23	5304533976		Guard, Lower, Plastic, Black		Appelez-nous	-
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 49.14
44	316517600		Bumper, Front, Main				$ 12.05
59	5304528243		Tube, Oven Vent				$ 21.21
62	5303935271		Terminal Block Kit				$ 73.56
63	316542600		Plate, Grounding Strap		Appelez-nous	-
64	5304528550		Shield, Terminal Block				$ 9.50
66	140195757129		Element, Broil, 4 Pass, 3000w   (Replaces: 5304533434)			Immediately	$ 56.13
67	140156196176		Element, Hidden Bake, 8 Pass, 2500w, 240v   (Replaces: 5304526373)			Immediately	$ 56.89
86	5304526279		Hinge, Oven Door, Orange, 2 Spring			Immediately	$ 70.22
87	5304526449		Bracket, Power Cord				$ 8.29
88	316099501		Pin, Guide		Appelez-nous	-
108	5304537803		Motor, Blower   (Replaces: 5304533431)				$ 121.71
110	5304533437		Duct Assembly, Cooling				$ 38.84
130	5304528291		Duct Assembly, Cooling, Upper				$ 140.72
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 23.06
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304533455		Harness, Wiring, Low Voltage				$ 58.55
NI	5304529018		Harness, Wiring, Main				$ 82.57
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	5304533471		Screw, T20, 4.4 X 13		Appelez-nous	-
NI	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NIA	387856311		Screw, 4.2 X 10				$ 3.03
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34

    View Diagram in Separate Window       Print Part List
