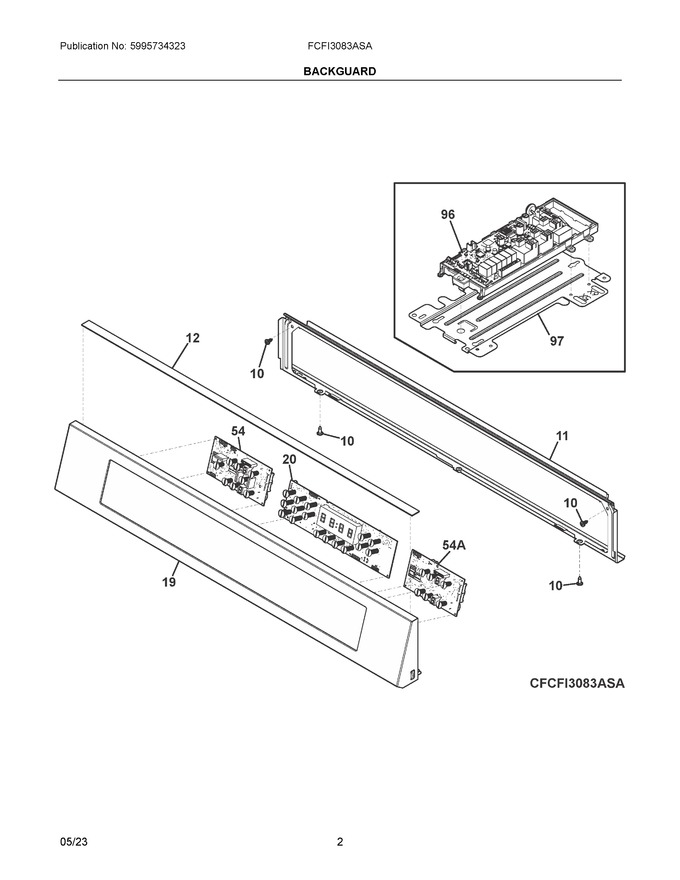

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| 11 | 5304528295 | Bracket, Support, Front Control |
|
Immediately | $ 25.33 | ||||
| 12 | 5304528554 | Seal, Smoothtop |
|
Immediately | $ 31.86 | ||||
| 19 | 5304528674 | Control Panel, Assembly, Stainless |
|
Immediately | $ 163.19 | ||||
| 20 | 5304533464 | Controller, Electronic, Ui410 |
|
Immediately | $ 148.30 | ||||
| 54 | 5304534654 | Control, Induction Units, Lh Side |
|
Immediately | $ 130.64 | ||||
| 96 | 140171068053 | Pc Board, Power, Ovc (Replaces: 5304525430) |
|
Immediately | $ 126.93 | ||||
| 97 | 5304528372 | Bracket, Ovc Board |
|
$ 11.68 | |||||
| 54A | 5304534655 | Control, Induction Units, Rh Side |
|
Immediately | $ 139.24 | ||||
| NI | 5304533439 | Harness, Wiring, Gen To Pux, Induction |
|
$ 31.46 | |||||
| NI | 5304533436 | Harness, Wiring, Macs, Lux To Acadia |
|
$ 24.27 | |||||
| NI | 5304529016 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 23.16 | |||||
| NI | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.32 | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- | |||||
| NIB | 5304533469 | Standoff, Harness, Plastic |
|
- |
