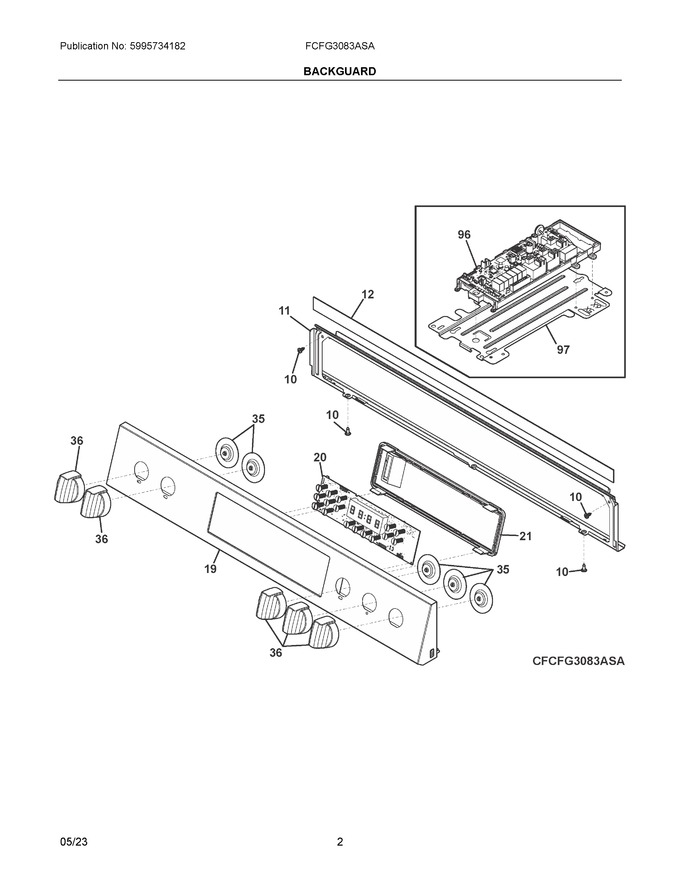

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304528391		Control Panel, Assembly, Stainless				$ 167.33
20	5304534096		Controller, Electronic, Oven, Ui410g				$ 151.41
21	5304534688		Cover, Control				$ 29.28
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
36	5304509064		Knob, Stainless				$ 66.74
96	140171068053		Pc Board, Power, Ovc   (Replaces: 5304525430)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304534087		Harness, Wiring, Macs Panel, To Ui				$ 51.26
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
