SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram

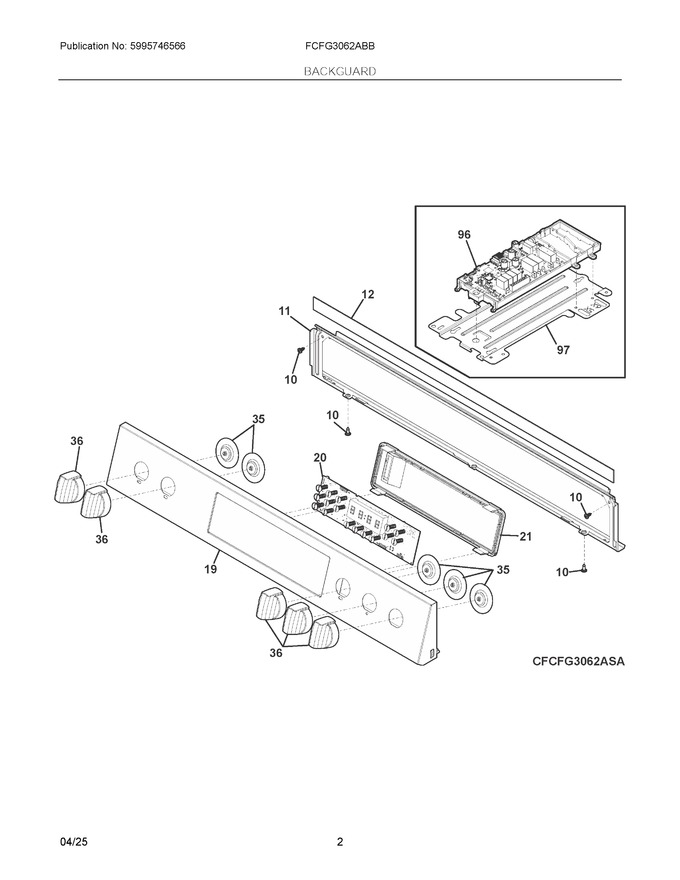

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304534696		Control Panel, Assembly, Glass/steel, Black		Appelez-nous	-
20	5304538391		Controller, Electronic, Ui405g   (Replaces: 5304534097)				$ 132.03
21	5304534688		Cover, Control				$ 29.28
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
36	5304507386		Knob, Top Valve, Black				$ 66.74
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
96	140202480038		Pc Board, Assembly, Ovc   (Replaces: 5304528427)			Immediately	$ 134.88
97	5304528372		Bracket, Ovc Board				$ 11.68
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304534087		Harness, Wiring, Macs Panel, To Ui				$ 51.26
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
