SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

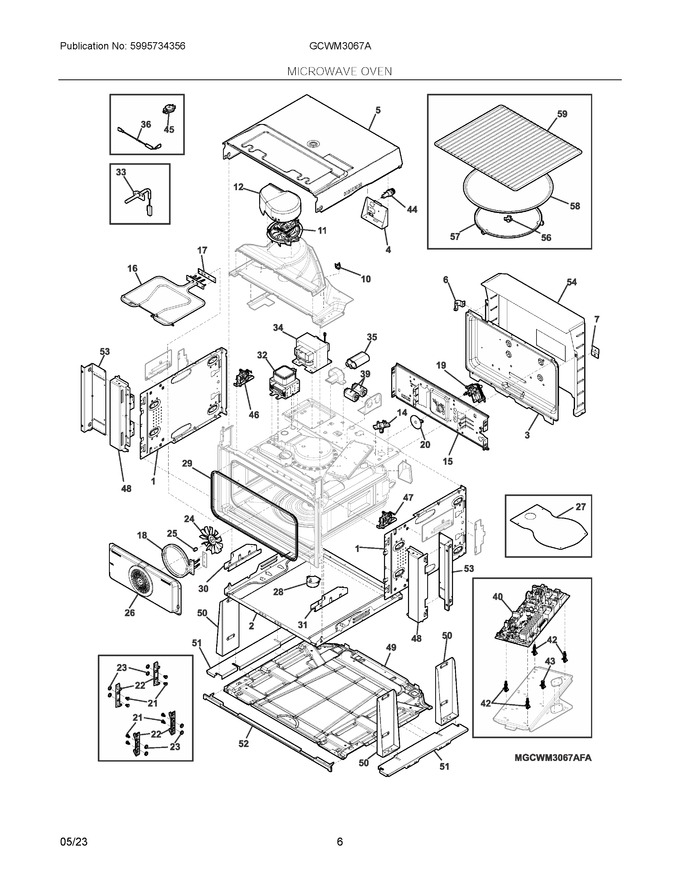

03 - Microwave Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555010801		Panel, Side		Appelez-nous	-
6	5304530398		Bracket, Link		Appelez-nous	-
7	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
19	555027103		Motor, Convection Fan			Immediately	$ 181.60
20	555033100		Shield, Convection Fan, Choke				$ 23.51
21	808373901		Pin, Support, Wire Shelf			Immediately	$ 10.16
24	555023101		Fan Blade, Convection				$ 29.58
25	561231207		Nut, Fan Blade			Immediately	$ 18.35
29	807177101		Gasket, Door, Microwave		Appelez-nous	-
30	387886701		Support, Lh Hinge				$ 25.02
31	387886702		Support, Rh Hinge				$ 25.02
32	555030400		Magnetron			Immediately	$ 223.61
33	555044200		Sensor, Pt500				$ 78.42
34	555030502		Transformer, 60hz, 120v			Immediately	$ 355.37
35	315795903		Capacitor, 60hz			Immediately	$ 113.91
36	555042802		Diode, High Voltage			Immediately	$ 32.20
42	330647300		Clip, Pc Board, (4)		Appelez-nous	-
43	330647301		Clip, Pc Board, Flat Top		Appelez-nous	-
45	387963800		Holder, Cable, Round		Appelez-nous	-
48	5304525122		Filler Bracket, Front, Black				$ 119.07
49	5304530352		Panel, Exterior, Bottom, Upper Oven		Appelez-nous	-
50	5304530402		Support, Side		Appelez-nous	-
51	5304530403		Cover, Side		Appelez-nous	-
52	5304530376		Trim, Filler, Bottom				$ 63.50
53	5304530384		Bracket, Trim Filler, Black, Front				$ 71.35
54	5304534078		Cover, Cable Guard, Microwave   (Replaces: 5304530377)		Appelez-nous	-
56	A15654501		Coupler, Turntable			Immediately	$ 18.25
57	A13881201		Roller Assembly, Turntable, Spider				$ 103.49
58	A13804901		Turntable, Glass, Round				$ 110.21
59	A19306501		Rack, Wire Shelf		Appelez-nous	-
NI	5304530385		Harness, Wiring, Microwave, Low Voltage				$ 78.01
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	349475501		Screw, Ab Pan T20, N6 X 1/4, (11)		Appelez-nous	-
NI	A17118015		Harness, Wiring, Hv Transformer, W/triac Sensor				$ 164.51
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	A17118003		Harness, Wiring, Ovc-p/j7, Dfsl/s4, Power Board, To Sensor				$ 139.04
NI	561045004		Nut, Heat Element, Upper		Appelez-nous	-
NI	A17118006		Harness, Wiring, Ovc-p/macs1, Power Board, To Panel				$ 139.04
NI	A17118014		Harness, Wiring, Ovc-p/j3, Pt500, Power Board, To Sensor			Immediately	$ 135.75
NI	A17118016		Harness, Wiring, Ui-macs/x1, Ui Board, To Sidekick				$ 135.75
NI	A17118021		Harness, Wiring, Ovc-p/maces2, Power Board, To Ui Board				$ 138.93
NI	5029617300		Clip Kit, Power Board, (11 Clip Pack)		Appelez-nous	-
NI	405522329		Screw Kit, T20, 4, 2 X 16, (4 Pack)		Appelez-nous	-
NIA	555031101		Sensor, Magnetron, Ntc				$ 137.93
NIA	561344207		Screw, Achrolyte, M4, 2x7		Appelez-nous	-
NIA	5304532068		Washer, Flat, Zinc Plated		Appelez-nous	-
