01 - Cover Sheet


02 - Control Panel

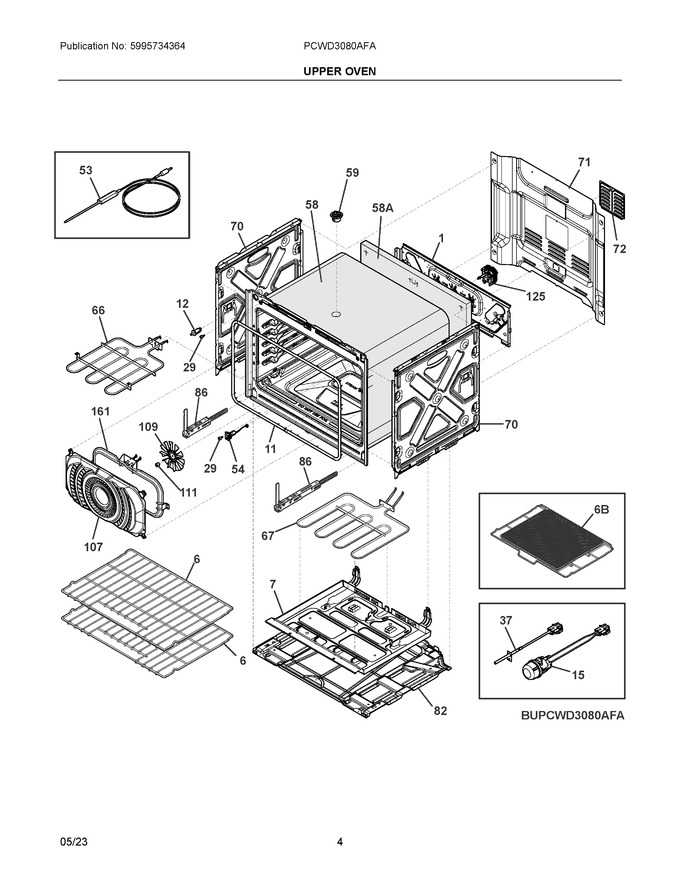

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526336		Panel, Rear		Appelez-nous	-
6	5304532107		Rack, Handled, Flat				$ 63.79
7	5304528326		Tray, Hidden Bake				$ 52.33
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 36.50
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
53	807822611		Probe, Food, Red   (Replaces: 807822606)			Immediately	$ 25.07
54	140233289069		Receptacle, Meat Probe   (Replaces: 5304532776)		Appelez-nous	-
58	140293845016		Insulation, Oven, Wrapper   (Replaces: 5304530429)		Appelez-nous	-
59	140169214032		Tube, Vent Catalyst   (Replaces: 5304526450)		Appelez-nous	-
66	5304536847		Element, Broil, 6 Pass, 4000w, 240v   (Replaces: 5304526370)			Immediately	$ 71.42
67	5304535239		Element-hidden Bk 2500w 8 Pass, 67 #			Immediately	$ 56.89
70	5304526314		Panel, Side, Exterior				$ 70.83
71	5304526329		Shield, Rear Wire				$ 78.87
72	5304526588		Cover, Convection Mtr				$ 17.01
82	5304530352		Panel, Exterior, Bottom, Upper Oven		Appelez-nous	-
86	5304530348		Hinge, Door, Purple			Immediately	$ 123.26
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304526375		Motor, Convection Fan				$ 163.80
161	5304526565		Element, Convection, 3800w, 240v, Rectangular			Immediately	$ 110.73
58A	5304530428		Insulation, Oven, Rear				$ 19.19
6B	FRIGPEREAFT		Frig Air Fry Tray Peregrine			Immediately	$ 116.89
86A	5304530349		Hinge, Door, Purple, 2 Spring				$ 63.20
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304532100		Harness, Ds Mdl, Upper Oven, Hall Effect		Appelez-nous	-
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 19.51
NI	5304532103		Harness, Wiring, Upper Oven, Main				$ 173.36
NI	387856311		Screw, 4.2 X 10				$ 3.03
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIB	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03

    View Diagram in Separate Window       Print Part List
