SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

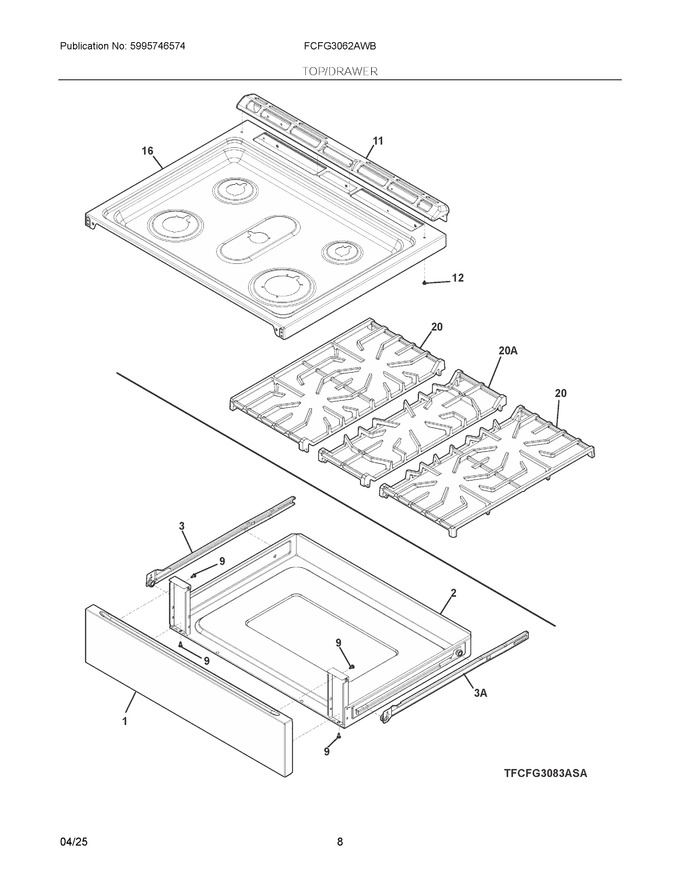

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526301		Panel, Drawer, White, Outer			Immediately	$ 84.68
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304528280		Trim, Rear Vent, White		Appelez-nous	-
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
16	5304528298		Maintop, Assembly, White		Appelez-nous	-
20	5304534693		Grate, Burner, Side				$ 105.53
20A	5304534694		Grate, Burner, Center			Immediately	$ 130.11
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
