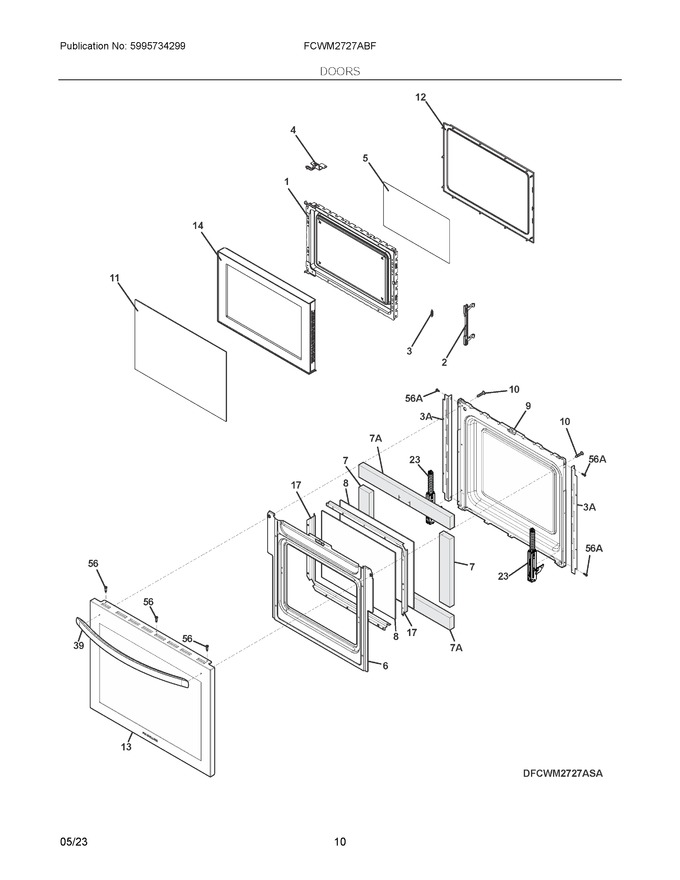

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520033		Frame Assembly, Door		Appelez-nous	-
2	5304519330		Latch Assembly, Door				$ 12.29
3	5304520034		Spring, Latch		Appelez-nous	-
4	5304519333		Hinge, Door, Upper				$ 24.62
5	5304520036		Film, Door, Inner				$ 12.29
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085803		Glass, Door, Inner, (2), Eko			Immediately	$ 108.45
9	139002917		Liner, Oven Door				$ 113.81
10	5304414648		Screw, Handle Mtg.				$ 14.18
11	5304520037		Screen, Door				$ 123.72
12	5304520035		Gasket, Door		Appelez-nous	-
13	5304525468		Door Assembly, Outer, Glass/steel, Black		Appelez-nous	-
14	5304520038		Panel, Door				$ 104.50
17	318264735		Spacer, Glass, (2)				$ 64.49
23	808930405		Hinge, Door, Blue, Soft Close				$ 100.36
39	5304531834		Handle, Door, Black		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
3A	5304525458		Trim, Door, Black, Side				$ 39.94
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
