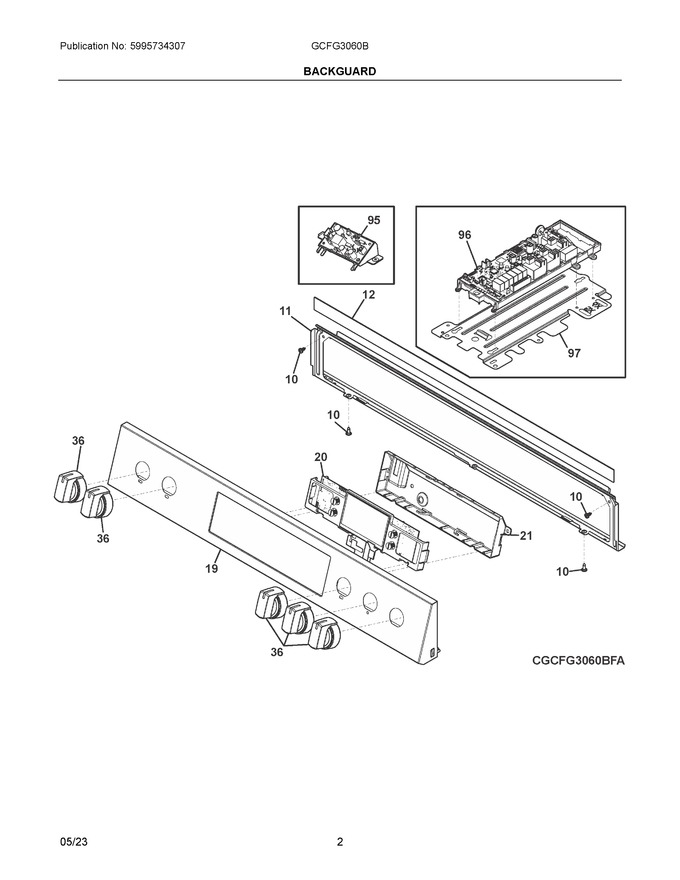

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304535367		Control Panel, Assembly, Ez Care Stnless				$ 144.77
20	5304535289		Controller, Electronic, Oven, Ui730			Immediately	$ 235.77
21	5304535290		Housing, Control				$ 46.62
36	5304528424		Knob Assembly			Immediately	$ 73.10
95	5304535286		Board Assembly, Backlit				$ 57.20
96	140171068053		Pc Board, Power, Ovc   (Replaces: 5304525430)			Immediately	$ 126.93
97	5304528373		Bracket, Ovc Board			Immediately	$ 22.13
NI	5304534087		Harness, Wiring, Macs Panel, To Ui				$ 51.26
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIB	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
