SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

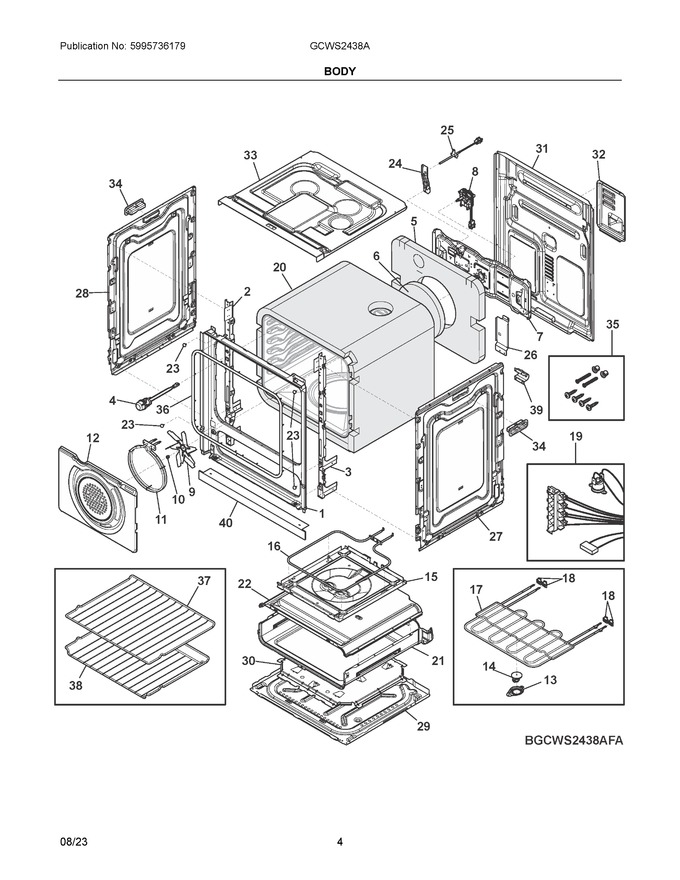

03 - Body


04 - Doors


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533754		Frame Assembly, Front		Appelez-nous	-
2	140262255031		Channel, Front Frame, Lh   (Replaces: 140204159028)		Appelez-nous	-
3	140204159010		Channel, Front Frame, Rh		Appelez-nous	-
4	5304533411		Lamp, Halogen, G9 40w 120v   (Replaces: 5304533556)			Immediately	$ 36.50
5	140215866017		Insulation, Oven, Back		Appelez-nous	-
6	4055549499		Insulation, Insert, Oven Back		Appelez-nous	-
7	4055578589		Brace, Oven, Rear		Appelez-nous	-
8	5304533557		Motor, Fan, Convection				$ 96.69
9	4055548913		Blade, Convection Fan		Appelez-nous	-
10	4055549481		Nut, Fan Blade		Appelez-nous	-
11	5304533558		Element, Convection		Appelez-nous	-
12	4055548855		Cover, Convection Fan		Appelez-nous	-
13	140292558016		Cover, Element Latch   (Replaces: 4055549440)		Appelez-nous	-
14	140292558016		Latch, Element Support   (Replaces: 4055549432)		Appelez-nous	-
15	4055549465		Cover, Bake Element		Appelez-nous	-
16	5304533757		Element, Bake, 1000w		Appelez-nous	-
17	5304533560		Element, Grill Boost, Broil		Appelez-nous	-
18	4055548723		Clip, Element Mtg.		Appelez-nous	-
19	5304533764		Wiring Harness Assembly, Main, W/terminal Block, Thermal Cutout, & Capacitor		Appelez-nous	-
20	4055549473		Insulation, Oven, Wrapper		Appelez-nous	-
21	5304533758		Grill Box, Assembly, Lower		Appelez-nous	-
22	4055549978		Panel, Grill Top		Appelez-nous	-
23	4055470712		Bumper, Stop, Black		Appelez-nous	-
24	4055549598		Bracket, Temp Probe		Appelez-nous	-
25	5304533767		Probe, Oven Temp			Immediately	$ 111.12
26	5304533768		Bracket, Terminal Block		Appelez-nous	-
27	140203265032		Panel, Oven, Rh Side		Appelez-nous	-
28	140203265040		Panel, Oven, Lh Side		Appelez-nous	-
29	4055548582		Panel, Oven, Bottom		Appelez-nous	-
30	5304533769		Cover, Bottom Panel, Shield		Appelez-nous	-
31	5304533770		Panel, Oven, Back, Wire Cover		Appelez-nous	-
32	5304533771		Cover, Access, Terminal Block		Appelez-nous	-
33	4055548624		Panel, Oven, Top		Appelez-nous	-
34	5304533563		Handle, Oven Moving		Appelez-nous	-
35	140071555019		Kit, Cabinet Install		Appelez-nous	-
36	4055549309		Seal, Oven Door		Appelez-nous	-
37	4055549218		Rack, Oven		Appelez-nous	-
38	5304533784		Rack, Oven, Offset		Appelez-nous	-
39	5304533786		Bracket, Conduit		Appelez-nous	-
40	5304535328		Trim, Installation, White, Lower		Appelez-nous	-
NI	4055548616		Screw, Hex/multi, #8 X 8mm		Appelez-nous	-
NI	4055549952		Screw, Ph2 Nylon Washr, #8 X 1/2		Appelez-nous	-
NI	5304533785		Harness Assembly, Box & Conduit, Power Connect		Appelez-nous	-
NI	4055541587		Cable Tie, Plt1m-m30		Appelez-nous	-
NI	4055548921		Screw, #2 Ph Ab Mush, #8 X 1/2, Black		Appelez-nous	-
NIA	5304533766		Harness, Wiring, Temp Probe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
