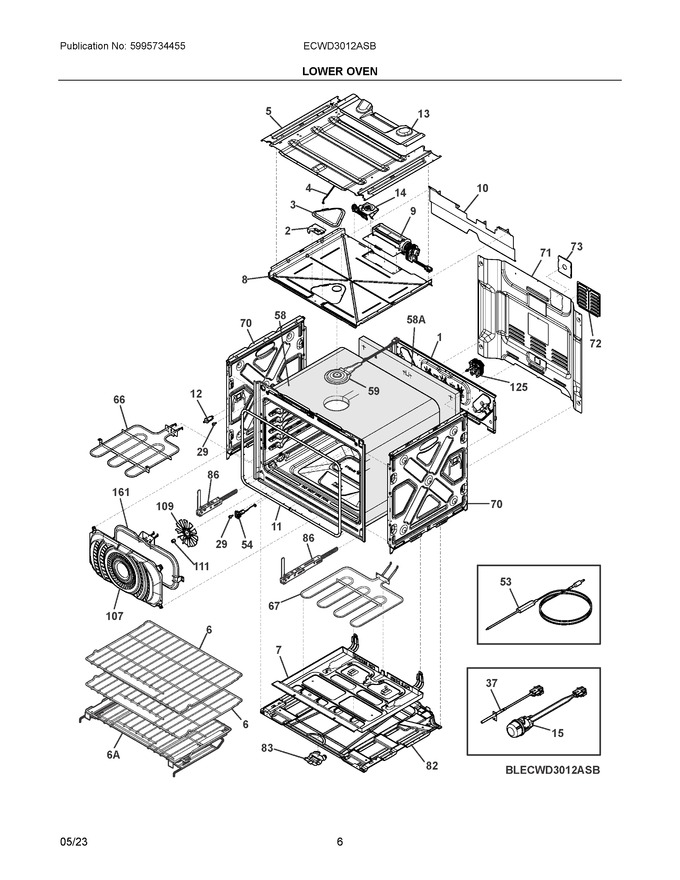

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526336		Panel, Rear		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	5304526313		Panel, Carrier Mid, Lower Dwo, Cooling		Appelez-nous	-
6	5304532107		Rack, Handled, Flat				$ 63.79
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
9	140175789035		Blower Assembly, Lower Oven   (Replaces: 5304530369)				$ 104.66
10	5304530426		Shield, Insulation, Lower Oven, Dwo		Appelez-nous	-
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	5304526495		Shield, Baffle, Lower Dwo, Cooling		Appelez-nous	-
14	140282916018		Motor Assembly, Door Latch/lock   (Replaces: 5304526552)		Appelez-nous	-
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 36.50
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
53	807822611		Probe, Food, Red   (Replaces: 807822606)			Immediately	$ 25.07
54	140233289077		Receptacle, Meat Probe   (Replaces: 5304534016)				$ 27.54
58	140293845024		Insulation, Wrapper, Oven   (Replaces: 5304532774)		Appelez-nous	-
59	5304530445		Vent Assembly, Vent Tube, Heated, W/catalyst		Appelez-nous	-
66	5304536847		Element, Broil, 6 Pass, 4000w, 240v   (Replaces: 5304526370)			Immediately	$ 71.42
67	5304535239		Element, Hidden Bake, 8 Pass, 67 #, 2500w			Immediately	$ 56.89
70	5304526314		Panel, Side, Exterior				$ 70.83
71	5304526330		Shield, Rear Wire, Lower Dwo				$ 66.08
72	5304526588		Cover, Convection Mtr				$ 17.01
73	5304526551		Cover, Anti Vibration		Appelez-nous	-
82	5304526311		Panel, Exterior, Bottom		Appelez-nous	-
83	5304530453		Bracket, Base Panel, Mount				$ 8.42
86	5304530350		Hinge, Door, Brown, Soft Close				$ 124.00
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304526375		Motor, Convection Fan				$ 163.80
161	5304526565		Element, Convection, 3800w, 240v, Rectangular			Immediately	$ 110.73
58A	5304530428		Insulation, Oven, Rear				$ 19.19
6A	5304530447		Rack Assembly, Glide			Immediately	$ 199.50
86A	5304530351		Hinge, Door, Brown, Double Spring			Immediately	$ 66.51
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	5304530460		Harness, Wiring, Ovc, To Lower Cavity		Appelez-nous	-
NI	5304531337		Harness, Wiring, Lower, Meat Probe		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304530449		Harness, Wiring, Lower Oven, Door Switch			Immediately	$ 46.36
NI	5304531338		Harness, Wiring, Main		Appelez-nous	-
NI	5304531339		Harness, Wiring, Lower Cavity, Ovc/high Volt		Appelez-nous	-
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 41.91
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIB	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
