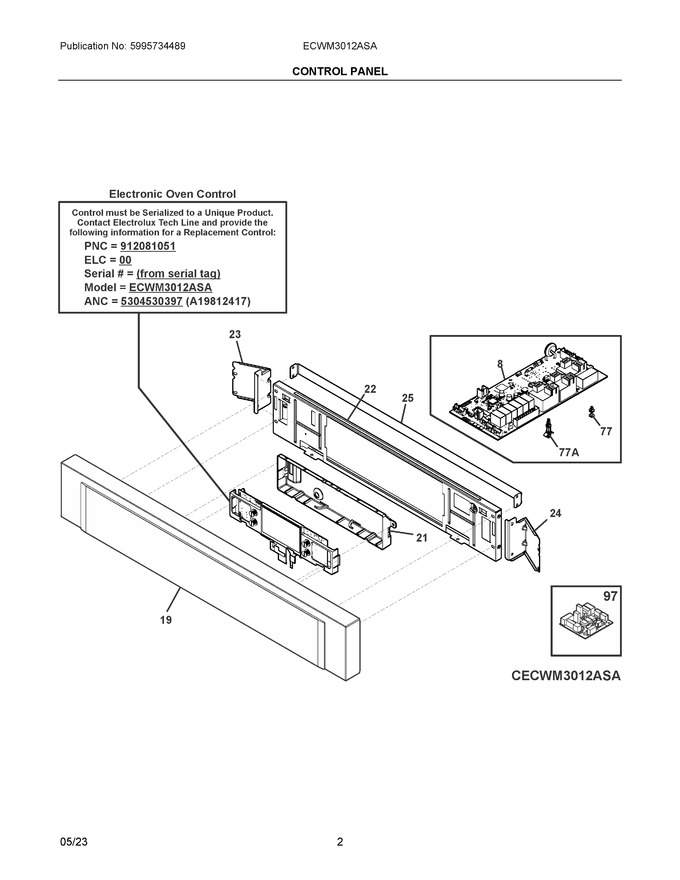

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477064		Circuit Board, Ovc   (Replaces: 5304530411)			Immediately	$ 135.00
19	5304530417		Control Panel, Assembly, Steel/glass, Stainless				$ 324.70
21	5304523582		Housing, Controller			Immediately	$ 34.13
22	A16358901		Bracket, Support, Control Panel				$ 80.59
23	5304530392		Bracket, Control Panel, Lh				$ 17.50
24	5304530393		Bracket, Control Panel, Rh				$ 17.50
25	5304535440		Bracket, Emc Shield   (Replaces: 5304530446)				$ 9.28
77	5304530451		Spacer, Standoff, Ovc		Appelez-nous	-
97	5304523590		Pc Board, Relay, Rampup Lighting				$ 205.22
77A	316114100		Spacer				$ 60.96
NI	5304530418		Harness, Wiring, Main, High Voltage		Appelez-nous	-
NI	5304530420		Harness, Wiring, Macs		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304530460		Harness, Wiring, Ovc, To Lower Cavity		Appelez-nous	-
NI	5304534477		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 41.91
