SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

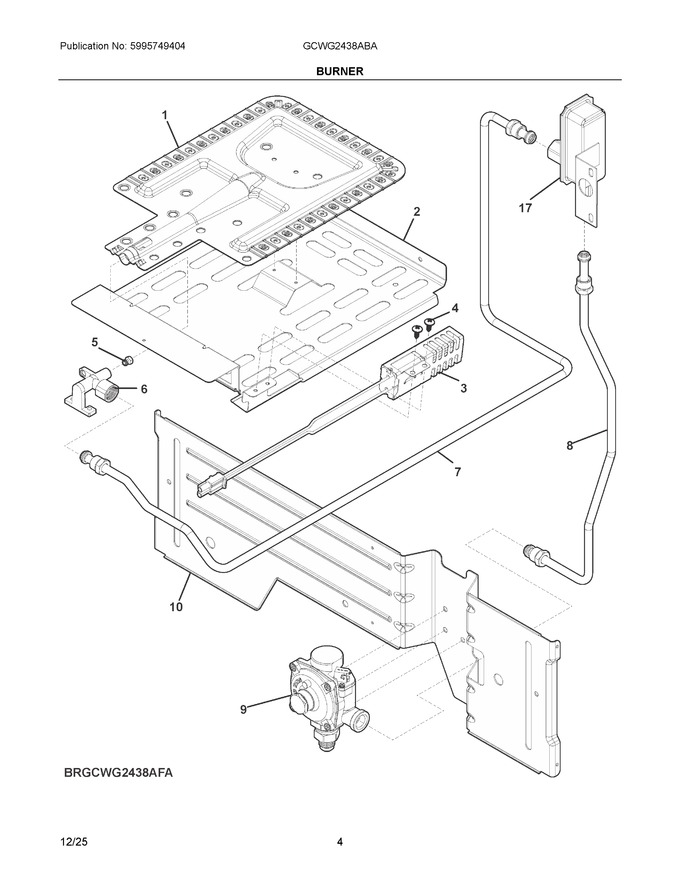

03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533807		Burner, Bake		Appelez-nous	-
2	5304533806		Panel, Aeration, Bake Burner		Appelez-nous	-
3	5304533808		Ignitor, Bake Burner		Appelez-nous	-
4	4055548996		Screw, T20, M4 X 4, Zinc, Ignitor		Appelez-nous	-
5	4055563664		Nipple, Injector, Bake Burner		Appelez-nous	-
6	5304533803		Holder, Nipple Injector, Bake Burner		Appelez-nous	-
7	5304533804		Tube, Gas, Safety Valve To, Bake Burner		Appelez-nous	-
8	5304533828		Tube, Gas, Regulator To, Safety Valve		Appelez-nous	-
9	5304533817		Regulator, Valve, Assembly		Appelez-nous	-
10	5304533816		Brace, Oven, Rear		Appelez-nous	-
17	140286091024		Valve, Safety, Single Port   (Replaces: 5304533805)		Appelez-nous	-
NI	5304533818		Cable Tie, Push Mount, Black		Appelez-nous	-
NI	4055548616		Screw, Hex/multi, #8 X 8mm		Appelez-nous	-
NIA	5304533809		Harness, Wiring, Bake Burner, Ignitor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
